# SSTO Lunar Ascent with Linear Tangent Guidance#

The following example implements a minimum time, single-stage to orbit ascent problem for launching from the lunar surface. Unlike the SSTO Earth Ascent example, here we use knowledge of the solution to simplify the optimization.

Instead of optimizing the thrust angle at any point in time as a dynamic control, we use our knowledge that the form of the solution is a linear tangent. See section 4.6 of Longuski, Guzmán, and Prussing for more explanation. In short, we’ve simplified the problem by finding the optimal value of $$\theta$$ at many points into optimizing the value of just two scalar parameters, $$a$$ and $$b$$.

$\theta = \arctan{\left(a * t + b\right)}$

Implementing this modified control scheme requires only a few changes. Rather than declaring $$\theta$$ as a controllable parameter for the ODE system, we implement a new component, LinearTangentGuidanceComp that accepts $$a$$ and $$b$$ as parameters to be optimized. It calculates $$\theta$$, which is then connected to the equations of motion component.

## Extended Design Structure Matrix#

In the XDSM for the ODE system for the SSTO linear tangent problem, the only significant change is that we have a new component, guidance, which accepts $$a$$, $$b$$, and $$time$$, and computes $$\theta$$.

## Solving the problem#

import numpy as np
import matplotlib.pyplot as plt
import openmdao.api as om
import dymos as dm
from dymos.examples.plotting import plot_results

g = 1.61544  # lunar gravity, m/s**2

class LaunchVehicle2DEOM(om.ExplicitComponent):
"""
Simple 2D Cartesian Equations of Motion for a launch vehicle subject to thrust and drag.
"""
def initialize(self):
self.options.declare('num_nodes', types=int)

def setup(self):
nn = self.options['num_nodes']

# Inputs
val=np.zeros(nn),
desc='x velocity',
units='m/s')

val=np.zeros(nn),
desc='y velocity',
units='m/s')

val=np.zeros(nn),
desc='mass',
units='kg')

val=np.zeros(nn),
desc='pitch angle',

val=2100000 * np.ones(nn),
desc='thrust',
units='N')

val=265.2 * np.ones(nn),
desc='specific impulse',
units='s')

# Outputs
val=np.zeros(nn),
desc='velocity component in x',
units='m/s')

val=np.zeros(nn),
desc='velocity component in y',
units='m/s')

val=np.zeros(nn),
desc='x acceleration magnitude',
units='m/s**2')

val=np.zeros(nn),
desc='y acceleration magnitude',
units='m/s**2')

val=np.zeros(nn),
desc='mass rate of change',
units='kg/s')

# Setup partials
ar = np.arange(self.options['num_nodes'])

self.declare_partials(of='xdot', wrt='vx', rows=ar, cols=ar, val=1.0)
self.declare_partials(of='ydot', wrt='vy', rows=ar, cols=ar, val=1.0)

self.declare_partials(of='vxdot', wrt='vx', rows=ar, cols=ar)
self.declare_partials(of='vxdot', wrt='m', rows=ar, cols=ar)
self.declare_partials(of='vxdot', wrt='theta', rows=ar, cols=ar)
self.declare_partials(of='vxdot', wrt='thrust', rows=ar, cols=ar)

self.declare_partials(of='vydot', wrt='m', rows=ar, cols=ar)
self.declare_partials(of='vydot', wrt='theta', rows=ar, cols=ar)
self.declare_partials(of='vydot', wrt='vy', rows=ar, cols=ar)
self.declare_partials(of='vydot', wrt='thrust', rows=ar, cols=ar)

self.declare_partials(of='mdot', wrt='thrust', rows=ar, cols=ar)
self.declare_partials(of='mdot', wrt='Isp', rows=ar, cols=ar)

def compute(self, inputs, outputs):
theta = inputs['theta']
cos_theta = np.cos(theta)
sin_theta = np.sin(theta)
vx = inputs['vx']
vy = inputs['vy']
m = inputs['m']
F_T = inputs['thrust']
Isp = inputs['Isp']

outputs['xdot'] = vx
outputs['ydot'] = vy
outputs['vxdot'] = F_T * cos_theta / m
outputs['vydot'] = F_T * sin_theta / m - g
outputs['mdot'] = -F_T / (g * Isp)

def compute_partials(self, inputs, jacobian):
theta = inputs['theta']
cos_theta = np.cos(theta)
sin_theta = np.sin(theta)
m = inputs['m']
F_T = inputs['thrust']
Isp = inputs['Isp']

# jacobian['vxdot', 'vx'] = -CDA * rho * vx / m
jacobian['vxdot', 'm'] = -(F_T * cos_theta) / m ** 2
jacobian['vxdot', 'theta'] = -(F_T / m) * sin_theta
jacobian['vxdot', 'thrust'] = cos_theta / m

# jacobian['vydot', 'vy'] = -CDA * rho * vy / m
jacobian['vydot', 'm'] = -(F_T * sin_theta) / m ** 2
jacobian['vydot', 'theta'] = (F_T / m) * cos_theta
jacobian['vydot', 'thrust'] = sin_theta / m

jacobian['mdot', 'thrust'] = -1.0 / (g * Isp)
jacobian['mdot', 'Isp'] = F_T / (g * Isp ** 2)

class LinearTangentGuidanceComp(om.ExplicitComponent):
""" Compute pitch angle from static controls governing linear expression for
pitch angle tangent as function of time.
"""

def initialize(self):
self.options.declare('num_nodes', types=int)

def setup(self):
nn = self.options['num_nodes']

val=np.zeros(nn),
desc='linear tangent slope',
units='1/s')

val=np.zeros(nn),
desc='tangent of theta at t=0',
units=None)

val=np.zeros(nn),
desc='time',
units='s')

val=np.zeros(nn),
desc='pitch angle',

# Setup partials
arange = np.arange(self.options['num_nodes'])

self.declare_partials(of='theta', wrt='a_ctrl', rows=arange, cols=arange, val=1.0)
self.declare_partials(of='theta', wrt='b_ctrl', rows=arange, cols=arange, val=1.0)
self.declare_partials(of='theta', wrt='time_phase', rows=arange, cols=arange, val=1.0)

def compute(self, inputs, outputs):
a = inputs['a_ctrl']
b = inputs['b_ctrl']
t = inputs['time_phase']
outputs['theta'] = np.arctan(a * t + b)

def compute_partials(self, inputs, jacobian):
a = inputs['a_ctrl']
b = inputs['b_ctrl']
t = inputs['time_phase']

x = a * t + b
denom = x ** 2 + 1.0

jacobian['theta', 'a_ctrl'] = t / denom
jacobian['theta', 'b_ctrl'] = 1.0 / denom
jacobian['theta', 'time_phase'] = a / denom

class LaunchVehicleLinearTangentODE(om.Group):
"""
The LaunchVehicleLinearTangentODE for this case consists of a guidance component and
the EOM.  Guidance is simply an OpenMDAO ExecComp which computes the arctangent of the
tan_theta variable.
"""
def initialize(self):
self.options.declare('num_nodes', types=int,
desc='Number of nodes to be evaluated in the RHS')

def setup(self):
nn = self.options['num_nodes']
self.connect('guidance.theta', 'eom.theta')

#
# Setup and solve the optimal control problem
#
p = om.Problem(model=om.Group())

p.driver = om.pyOptSparseDriver()
p.driver.declare_coloring()

traj = dm.Trajectory()

phase = dm.Phase(ode_class=LaunchVehicleLinearTangentODE,
transcription=dm.GaussLobatto(num_segments=10, order=5, compressed=True))

phase.set_time_options(fix_initial=True, duration_bounds=(10, 1000),
targets=['guidance.time_phase'])

phase.add_state('vx', fix_initial=True, lower=0, rate_source='eom.vxdot', targets=['eom.vx'], units='m/s')

phase.add_parameter('thrust', units='N', opt=False, val=3.0 * 50000.0 * 1.61544, targets=['eom.thrust'])

p.model.linear_solver = om.DirectSolver()

p.setup(check=True)

p['traj.phase0.t_initial'] = 0.0
p['traj.phase0.t_duration'] = 500.0
p['traj.phase0.states:x'] = phase.interp('x', [0, 350000.0])
p['traj.phase0.states:y'] = phase.interp('y', [0, 185000.0])
p['traj.phase0.states:vx'] = phase.interp('vx', [0, 1627.0])
p['traj.phase0.states:vy'] = phase.interp('vy', [1.0E-6, 0])
p['traj.phase0.states:m'] = phase.interp('m', [50000, 50000])
p['traj.phase0.parameters:a_ctrl'] = -0.01
p['traj.phase0.parameters:b_ctrl'] = 3.0

dm.run_problem(p, simulate=True)

--- Constraint Report [traj] ---
--- phase0 ---
[final]   1.8500e+05 == y [m]
[final]   1.6270e+03 == vx [m/s]
[final]   0.0000e+00 == vy [m/s]

INFO: checking out_of_order

INFO:check_config:checking out_of_order

INFO: checking system

INFO:check_config:checking system

INFO: checking solvers

INFO:check_config:checking solvers

INFO: checking dup_inputs

INFO:check_config:checking dup_inputs

INFO: checking missing_recorders

INFO:check_config:checking missing_recorders

WARNING: The Problem has no recorder of any kind attached

WARNING:check_config:The Problem has no recorder of any kind attached

INFO: checking unserializable_options

INFO:check_config:checking unserializable_options

INFO: checking comp_has_no_outputs

INFO:check_config:checking comp_has_no_outputs

INFO: checking auto_ivc_warnings

INFO:check_config:checking auto_ivc_warnings

Model viewer data has already been recorded for Driver.
INFO: checking out_of_order

INFO:check_config:checking out_of_order

INFO: checking system

INFO:check_config:checking system

INFO: checking solvers

INFO:check_config:checking solvers

INFO: checking dup_inputs

INFO:check_config:checking dup_inputs

INFO: checking missing_recorders

INFO:check_config:checking missing_recorders

WARNING: The Problem has no recorder of any kind attached

WARNING:check_config:The Problem has no recorder of any kind attached

INFO: checking unserializable_options

INFO:check_config:checking unserializable_options

INFO: checking comp_has_no_outputs

INFO:check_config:checking comp_has_no_outputs

INFO: checking auto_ivc_warnings

INFO:check_config:checking auto_ivc_warnings

Full total jacobian was computed 3 times, taking 0.081262 seconds.
Total jacobian shape: (103, 103)

Jacobian shape: (103, 103)  ( 9.79% nonzero)
FWD solves: 14   REV solves: 0
Total colors vs. total size: 14 vs 103  (86.4% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.081262 sec.
Time to compute coloring: 0.089909 sec.
Memory to compute coloring: 0.250000 MB.

Optimization Problem -- Optimization using pyOpt_sparse
================================================================================
Objective Function: _objfunc

Solution:
--------------------------------------------------------------------------------
Total Time:                    0.0812
User Objective Time :       0.0098
User Sensitivity Time :     0.0348
Interface Time :            0.0157
Opt Solver Time:            0.0209
Calls to Objective Function :       6
Calls to Sens Function :            5

Objectives
Index  Name                                 Value
0  traj.phases.phase0.time.t     4.817168E+00

Variables (c - continuous, i - integer, d - discrete)
Index  Name                                           Type      Lower Bound            Value      Upper Bound     Status
0  traj.phase0.t_duration_0                          c     1.000000E+01     4.817168E+02     1.000000E+03
1  traj.phase0.parameters:a_ctrl_0                   c    -1.000000E+21    -8.280511E-03     1.000000E+21
2  traj.phase0.parameters:b_ctrl_0                   c    -1.000000E+21     2.747399E+00     1.000000E+21
3  traj.phases.phase0.indep_states.states:x_0        c     0.000000E+00     4.914075E+02     1.000000E+21
4  traj.phases.phase0.indep_states.states:x_1        c     0.000000E+00     2.010769E+03     1.000000E+21
5  traj.phases.phase0.indep_states.states:x_2        c     0.000000E+00     4.632596E+03     1.000000E+21
6  traj.phases.phase0.indep_states.states:x_3        c     0.000000E+00     8.441819E+03     1.000000E+21
7  traj.phases.phase0.indep_states.states:x_4        c     0.000000E+00     1.353576E+04     1.000000E+21
8  traj.phases.phase0.indep_states.states:x_5        c     0.000000E+00     2.002641E+04     1.000000E+21
9  traj.phases.phase0.indep_states.states:x_6        c     0.000000E+00     2.804305E+04     1.000000E+21
10  traj.phases.phase0.indep_states.states:x_7        c     0.000000E+00     3.773482E+04     1.000000E+21
11  traj.phases.phase0.indep_states.states:x_8        c     0.000000E+00     4.927264E+04     1.000000E+21
12  traj.phases.phase0.indep_states.states:x_9        c     0.000000E+00     6.284916E+04     1.000000E+21
13  traj.phases.phase0.indep_states.states:x_10       c     0.000000E+00     7.867365E+04     1.000000E+21
14  traj.phases.phase0.indep_states.states:x_11       c     0.000000E+00     9.695801E+04     1.000000E+21
15  traj.phases.phase0.indep_states.states:x_12       c     0.000000E+00     1.178897E+05     1.000000E+21
16  traj.phases.phase0.indep_states.states:x_13       c     0.000000E+00     1.415942E+05     1.000000E+21
17  traj.phases.phase0.indep_states.states:x_14       c     0.000000E+00     1.681011E+05     1.000000E+21
18  traj.phases.phase0.indep_states.states:x_15       c     0.000000E+00     1.973350E+05     1.000000E+21
19  traj.phases.phase0.indep_states.states:x_16       c     0.000000E+00     2.291382E+05     1.000000E+21
20  traj.phases.phase0.indep_states.states:x_17       c     0.000000E+00     2.633083E+05     1.000000E+21
21  traj.phases.phase0.indep_states.states:x_18       c     0.000000E+00     2.996321E+05     1.000000E+21
22  traj.phases.phase0.indep_states.states:x_19       c     0.000000E+00     3.379071E+05     1.000000E+21
23  traj.phases.phase0.indep_states.states:y_0        c     0.000000E+00     8.484836E+02     1.000000E+21
24  traj.phases.phase0.indep_states.states:y_1        c     0.000000E+00     3.376666E+03     1.000000E+21
25  traj.phases.phase0.indep_states.states:y_2        c     0.000000E+00     7.554202E+03     1.000000E+21
26  traj.phases.phase0.indep_states.states:y_3        c     0.000000E+00     1.334336E+04     1.000000E+21
27  traj.phases.phase0.indep_states.states:y_4        c     0.000000E+00     2.069660E+04     1.000000E+21
28  traj.phases.phase0.indep_states.states:y_5        c     0.000000E+00     2.955320E+04     1.000000E+21
29  traj.phases.phase0.indep_states.states:y_6        c     0.000000E+00     3.983444E+04     1.000000E+21
30  traj.phases.phase0.indep_states.states:y_7        c     0.000000E+00     5.143680E+04     1.000000E+21
31  traj.phases.phase0.indep_states.states:y_8        c     0.000000E+00     6.422234E+04     1.000000E+21
32  traj.phases.phase0.indep_states.states:y_9        c     0.000000E+00     7.800565E+04     1.000000E+21
33  traj.phases.phase0.indep_states.states:y_10       c     0.000000E+00     9.253734E+04     1.000000E+21
34  traj.phases.phase0.indep_states.states:y_11       c     0.000000E+00     1.074866E+05     1.000000E+21
35  traj.phases.phase0.indep_states.states:y_12       c     0.000000E+00     1.224307E+05     1.000000E+21
36  traj.phases.phase0.indep_states.states:y_13       c     0.000000E+00     1.368636E+05     1.000000E+21
37  traj.phases.phase0.indep_states.states:y_14       c     0.000000E+00     1.502346E+05     1.000000E+21
38  traj.phases.phase0.indep_states.states:y_15       c     0.000000E+00     1.620065E+05     1.000000E+21
39  traj.phases.phase0.indep_states.states:y_16       c     0.000000E+00     1.717075E+05     1.000000E+21
40  traj.phases.phase0.indep_states.states:y_17       c     0.000000E+00     1.789562E+05     1.000000E+21
41  traj.phases.phase0.indep_states.states:y_18       c     0.000000E+00     1.834600E+05     1.000000E+21
42  traj.phases.phase0.indep_states.states:y_19       c     0.000000E+00     1.850000E+05     1.000000E+21
43  traj.phases.phase0.indep_states.states:vx_0       c     0.000000E+00     4.125858E+01     1.000000E+21
44  traj.phases.phase0.indep_states.states:vx_1       c     0.000000E+00     8.541812E+01     1.000000E+21
45  traj.phases.phase0.indep_states.states:vx_2       c     0.000000E+00     1.328751E+02     1.000000E+21
46  traj.phases.phase0.indep_states.states:vx_3       c     0.000000E+00     1.841006E+02     1.000000E+21
47  traj.phases.phase0.indep_states.states:vx_4       c     0.000000E+00     2.396544E+02     1.000000E+21
48  traj.phases.phase0.indep_states.states:vx_5       c     0.000000E+00     3.001984E+02     1.000000E+21
49  traj.phases.phase0.indep_states.states:vx_6       c     0.000000E+00     3.665047E+02     1.000000E+21
50  traj.phases.phase0.indep_states.states:vx_7       c     0.000000E+00     4.394465E+02     1.000000E+21
51  traj.phases.phase0.indep_states.states:vx_8       c     0.000000E+00     5.199484E+02     1.000000E+21
52  traj.phases.phase0.indep_states.states:vx_9       c     0.000000E+00     6.088531E+02     1.000000E+21
53  traj.phases.phase0.indep_states.states:vx_10      c     0.000000E+00     7.066397E+02     1.000000E+21
54  traj.phases.phase0.indep_states.states:vx_11      c     0.000000E+00     8.129513E+02     1.000000E+21
55  traj.phases.phase0.indep_states.states:vx_12      c     0.000000E+00     9.260354E+02     1.000000E+21
56  traj.phases.phase0.indep_states.states:vx_13      c     0.000000E+00     1.042511E+03     1.000000E+21
57  traj.phases.phase0.indep_states.states:vx_14      c     0.000000E+00     1.157984E+03     1.000000E+21
58  traj.phases.phase0.indep_states.states:vx_15      c     0.000000E+00     1.268376E+03     1.000000E+21
59  traj.phases.phase0.indep_states.states:vx_16      c     0.000000E+00     1.371019E+03     1.000000E+21
60  traj.phases.phase0.indep_states.states:vx_17      c     0.000000E+00     1.464847E+03     1.000000E+21
61  traj.phases.phase0.indep_states.states:vx_18      c     0.000000E+00     1.549945E+03     1.000000E+21
62  traj.phases.phase0.indep_states.states:vx_19      c     0.000000E+00     1.627000E+03     1.000000E+21
63  traj.phases.phase0.indep_states.states:vy_0       c    -1.000000E+21     7.028492E+01     1.000000E+21
64  traj.phases.phase0.indep_states.states:vy_1       c    -1.000000E+21     1.394373E+02     1.000000E+21
65  traj.phases.phase0.indep_states.states:vy_2       c    -1.000000E+21     2.071905E+02     1.000000E+21
66  traj.phases.phase0.indep_states.states:vy_3       c    -1.000000E+21     2.731933E+02     1.000000E+21
67  traj.phases.phase0.indep_states.states:vy_4       c    -1.000000E+21     3.369762E+02     1.000000E+21
68  traj.phases.phase0.indep_states.states:vy_5       c    -1.000000E+21     3.979035E+02     1.000000E+21
69  traj.phases.phase0.indep_states.states:vy_6       c    -1.000000E+21     4.551033E+02     1.000000E+21
70  traj.phases.phase0.indep_states.states:vy_7       c    -1.000000E+21     5.073683E+02     1.000000E+21
71  traj.phases.phase0.indep_states.states:vy_8       c    -1.000000E+21     5.530247E+02     1.000000E+21
72  traj.phases.phase0.indep_states.states:vy_9       c    -1.000000E+21     5.897782E+02     1.000000E+21
73  traj.phases.phase0.indep_states.states:vy_10      c    -1.000000E+21     6.145998E+02     1.000000E+21
74  traj.phases.phase0.indep_states.states:vy_11      c    -1.000000E+21     6.238029E+02     1.000000E+21
75  traj.phases.phase0.indep_states.states:vy_12      c    -1.000000E+21     6.135685E+02     1.000000E+21
76  traj.phases.phase0.indep_states.states:vy_13      c    -1.000000E+21     5.810350E+02     1.000000E+21
77  traj.phases.phase0.indep_states.states:vy_14      c    -1.000000E+21     5.254906E+02     1.000000E+21
78  traj.phases.phase0.indep_states.states:vy_15      c    -1.000000E+21     4.487217E+02     1.000000E+21
79  traj.phases.phase0.indep_states.states:vy_16      c    -1.000000E+21     3.541772E+02     1.000000E+21
80  traj.phases.phase0.indep_states.states:vy_17      c    -1.000000E+21     2.457161E+02     1.000000E+21
81  traj.phases.phase0.indep_states.states:vy_18      c    -1.000000E+21     1.267600E+02     1.000000E+21
82  traj.phases.phase0.indep_states.states:vy_19      c    -1.000000E+21     0.000000E+00     1.000000E+21
83  traj.phases.phase0.indep_states.states:m_0        c    -1.000000E+21     4.999639E+04     1.000000E+21
84  traj.phases.phase0.indep_states.states:m_1        c    -1.000000E+21     4.999277E+04     1.000000E+21
85  traj.phases.phase0.indep_states.states:m_2        c    -1.000000E+21     4.998916E+04     1.000000E+21
86  traj.phases.phase0.indep_states.states:m_3        c    -1.000000E+21     4.998555E+04     1.000000E+21
87  traj.phases.phase0.indep_states.states:m_4        c    -1.000000E+21     4.998194E+04     1.000000E+21
88  traj.phases.phase0.indep_states.states:m_5        c    -1.000000E+21     4.997832E+04     1.000000E+21
89  traj.phases.phase0.indep_states.states:m_6        c    -1.000000E+21     4.997471E+04     1.000000E+21
90  traj.phases.phase0.indep_states.states:m_7        c    -1.000000E+21     4.997110E+04     1.000000E+21
91  traj.phases.phase0.indep_states.states:m_8        c    -1.000000E+21     4.996748E+04     1.000000E+21
92  traj.phases.phase0.indep_states.states:m_9        c    -1.000000E+21     4.996387E+04     1.000000E+21
93  traj.phases.phase0.indep_states.states:m_10       c    -1.000000E+21     4.996026E+04     1.000000E+21
94  traj.phases.phase0.indep_states.states:m_11       c    -1.000000E+21     4.995665E+04     1.000000E+21
95  traj.phases.phase0.indep_states.states:m_12       c    -1.000000E+21     4.995303E+04     1.000000E+21
96  traj.phases.phase0.indep_states.states:m_13       c    -1.000000E+21     4.994942E+04     1.000000E+21
97  traj.phases.phase0.indep_states.states:m_14       c    -1.000000E+21     4.994581E+04     1.000000E+21
98  traj.phases.phase0.indep_states.states:m_15       c    -1.000000E+21     4.994219E+04     1.000000E+21
99  traj.phases.phase0.indep_states.states:m_16       c    -1.000000E+21     4.993858E+04     1.000000E+21
100  traj.phases.phase0.indep_states.states:m_17       c    -1.000000E+21     4.993497E+04     1.000000E+21
101  traj.phases.phase0.indep_states.states:m_18       c    -1.000000E+21     4.993136E+04     1.000000E+21
102  traj.phases.phase0.indep_states.states:m_19       c    -1.000000E+21     4.992774E+04     1.000000E+21

Constraints (i - inequality, e - equality)
Index  Name                                                 Type          Lower           Value           Upper    Status  Lagrange Multiplier (N/A)
0  traj.phases.phase0->final_boundary_constraint->y        e   1.850000E+05    1.850000E+05    1.850000E+05              9.00000E+100
1  traj.phases.phase0->final_boundary_constraint->vx       e   1.627000E+03    1.627000E+03    1.627000E+03              9.00000E+100
2  traj.phases.phase0->final_boundary_constraint->vy       e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
3  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    8.557009E-14    0.000000E+00              9.00000E+100
4  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    6.845607E-13    0.000000E+00              9.00000E+100
5  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    1.026841E-12    0.000000E+00              9.00000E+100
6  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    6.845607E-13    0.000000E+00              9.00000E+100
7  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    3.422804E-12    0.000000E+00              9.00000E+100
8  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    2.738243E-12    0.000000E+00              9.00000E+100
9  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -1.369121E-12    0.000000E+00              9.00000E+100
10  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -1.369121E-12    0.000000E+00              9.00000E+100
11  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    1.095297E-11    0.000000E+00              9.00000E+100
12  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -1.642946E-11    0.000000E+00              9.00000E+100
13  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    2.738243E-12    0.000000E+00              9.00000E+100
14  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    1.369121E-11    0.000000E+00              9.00000E+100
15  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    5.476486E-12    0.000000E+00              9.00000E+100
16  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -2.464419E-11    0.000000E+00              9.00000E+100
17  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -5.476486E-12    0.000000E+00              9.00000E+100
18  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -3.285892E-11    0.000000E+00              9.00000E+100
19  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -5.476486E-12    0.000000E+00              9.00000E+100
20  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    3.833540E-11    0.000000E+00              9.00000E+100
21  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
22  traj.phases.phase0.collocation_constraint.defects:x     e   0.000000E+00   -2.738243E-11    0.000000E+00              9.00000E+100
23  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
24  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    6.845607E-13    0.000000E+00              9.00000E+100
25  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    1.369121E-12    0.000000E+00              9.00000E+100
26  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
27  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
28  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    1.369121E-12    0.000000E+00              9.00000E+100
29  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    5.476486E-12    0.000000E+00              9.00000E+100
30  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    1.369121E-12    0.000000E+00              9.00000E+100
31  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00   -8.214729E-12    0.000000E+00              9.00000E+100
32  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00   -1.095297E-11    0.000000E+00              9.00000E+100
33  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
34  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    1.642946E-11    0.000000E+00              9.00000E+100
35  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
36  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    2.738243E-11    0.000000E+00              9.00000E+100
37  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    2.738243E-12    0.000000E+00              9.00000E+100
38  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    1.095297E-11    0.000000E+00              9.00000E+100
39  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00   -4.107364E-12    0.000000E+00              9.00000E+100
40  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00   -2.601331E-11    0.000000E+00              9.00000E+100
41  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00   -4.928837E-11    0.000000E+00              9.00000E+100
42  traj.phases.phase0.collocation_constraint.defects:y     e   0.000000E+00    8.488553E-11    0.000000E+00              9.00000E+100
43  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    1.604439E-14    0.000000E+00              9.00000E+100
44  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -1.069626E-14    0.000000E+00              9.00000E+100
45  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    4.278505E-14    0.000000E+00              9.00000E+100
46  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -2.139252E-14    0.000000E+00              9.00000E+100
47  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -3.208878E-14    0.000000E+00              9.00000E+100
48  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    5.348131E-14    0.000000E+00              9.00000E+100
49  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -1.711402E-13    0.000000E+00              9.00000E+100
50  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    5.348131E-14    0.000000E+00              9.00000E+100
51  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -3.208878E-14    0.000000E+00              9.00000E+100
52  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    1.069626E-13    0.000000E+00              9.00000E+100
53  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -8.557009E-14    0.000000E+00              9.00000E+100
54  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    1.069626E-13    0.000000E+00              9.00000E+100
55  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    6.417757E-14    0.000000E+00              9.00000E+100
56  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -6.417757E-14    0.000000E+00              9.00000E+100
57  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -3.850654E-13    0.000000E+00              9.00000E+100
58  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    1.925327E-13    0.000000E+00              9.00000E+100
59  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    4.064579E-13    0.000000E+00              9.00000E+100
60  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00   -6.952570E-13    0.000000E+00              9.00000E+100
61  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    2.460140E-13    0.000000E+00              9.00000E+100
62  traj.phases.phase0.collocation_constraint.defects:vx    e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
63  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
64  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
65  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -2.139252E-14    0.000000E+00              9.00000E+100
66  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -1.069626E-14    0.000000E+00              9.00000E+100
67  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    5.348131E-14    0.000000E+00              9.00000E+100
68  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    1.069626E-14    0.000000E+00              9.00000E+100
69  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    1.069626E-14    0.000000E+00              9.00000E+100
70  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    9.626635E-14    0.000000E+00              9.00000E+100
71  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    6.952570E-14    0.000000E+00              9.00000E+100
72  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -1.818364E-13    0.000000E+00              9.00000E+100
73  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    9.626635E-14    0.000000E+00              9.00000E+100
74  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    6.685163E-14    0.000000E+00              9.00000E+100
75  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    6.150350E-14    0.000000E+00              9.00000E+100
76  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    1.176589E-13    0.000000E+00              9.00000E+100
77  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -1.604439E-13    0.000000E+00              9.00000E+100
78  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    8.557009E-14    0.000000E+00              9.00000E+100
79  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    1.283551E-13    0.000000E+00              9.00000E+100
80  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -6.417757E-14    0.000000E+00              9.00000E+100
81  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00   -2.139252E-14    0.000000E+00              9.00000E+100
82  traj.phases.phase0.collocation_constraint.defects:vy    e   0.000000E+00    6.417757E-14    0.000000E+00              9.00000E+100
83  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.957416E-12    0.000000E+00              9.00000E+100
84  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.259351E-11    0.000000E+00              9.00000E+100
85  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    2.015176E-11    0.000000E+00              9.00000E+100
86  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.258950E-11    0.000000E+00              9.00000E+100
87  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    9.237559E-12    0.000000E+00              9.00000E+100
88  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.961427E-12    0.000000E+00              9.00000E+100
89  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.805128E-11    0.000000E+00              9.00000E+100
90  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.259351E-11    0.000000E+00              9.00000E+100
91  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.957416E-12    0.000000E+00              9.00000E+100
92  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.650968E-11    0.000000E+00              9.00000E+100
93  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.076712E-11    0.000000E+00              9.00000E+100
94  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.965438E-12    0.000000E+00              9.00000E+100
95  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -7.137080E-12    0.000000E+00              9.00000E+100
96  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.957416E-12    0.000000E+00              9.00000E+100
97  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.105325E-11    0.000000E+00              9.00000E+100
98  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.259351E-11    0.000000E+00              9.00000E+100
99  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.680650E-12    0.000000E+00              9.00000E+100
100  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.259351E-11    0.000000E+00              9.00000E+100
101  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00    1.957416E-12    0.000000E+00              9.00000E+100
102  traj.phases.phase0.collocation_constraint.defects:m     e   0.000000E+00   -1.259351E-11    0.000000E+00              9.00000E+100

Exit Status
Inform  Description
0  Optimization terminated successfully.
--------------------------------------------------------------------------------

Simulating trajectory traj
Model viewer data has already been recorded for Driver.

Done simulating trajectory traj

False

Hide code cell source

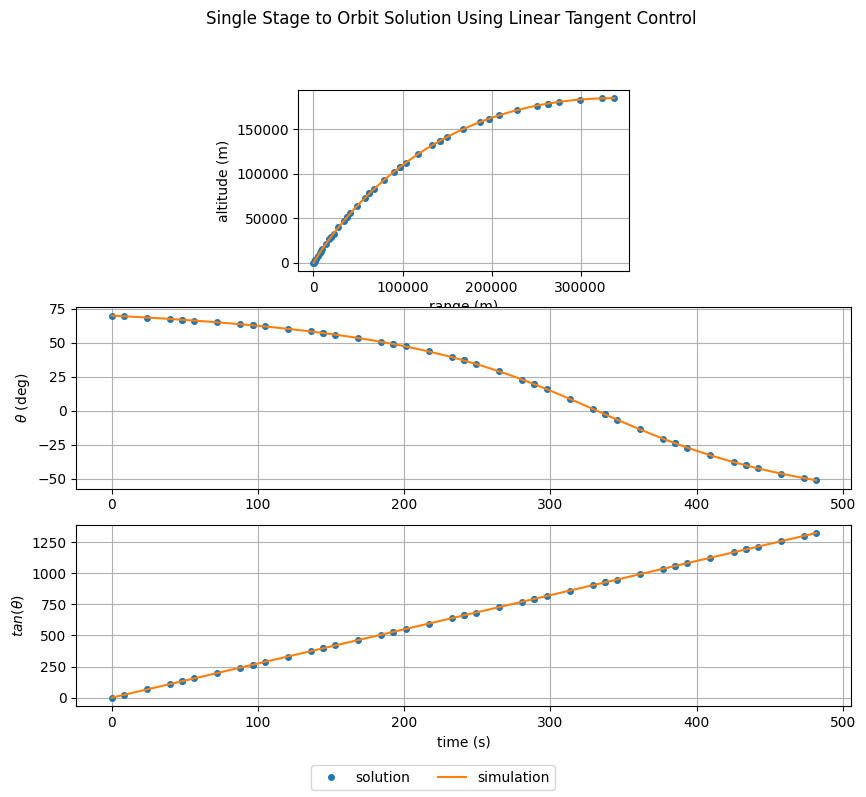

sol = om.CaseReader('dymos_solution.db').get_case('final')

fig, [traj_ax, control_ax, param_ax] = plt.subplots(nrows=3, ncols=1, figsize=(10, 8))

traj_ax.plot(sol.get_val('traj.phase0.timeseries.x'),
sol.get_val('traj.phase0.timeseries.y'),
marker='o',
ms=4,
linestyle='None',
label='solution')

traj_ax.plot(sim.get_val('traj.phase0.timeseries.x'),
sim.get_val('traj.phase0.timeseries.y'),
marker=None,
linestyle='-',
label='simulation')

traj_ax.set_xlabel('range (m)')
traj_ax.set_ylabel('altitude (m)')
traj_ax.set_aspect('equal')
traj_ax.grid(True)

control_ax.plot(sol.get_val('traj.phase0.timeseries.time'),
sol.get_val('traj.phase0.timeseries.theta'),
marker='o',
ms=4,
linestyle='None')

control_ax.plot(sim.get_val('traj.phase0.timeseries.time'),
sim.get_val('traj.phase0.timeseries.theta'),
linestyle='-',
marker=None)

control_ax.set_ylabel(r'$\theta$ (deg)')
control_ax.grid(True)

a = sol.get_val('traj.phase0.parameters:a_ctrl')
b = sol.get_val('traj.phase0.parameters:b_ctrl')
t = sol.get_val('traj.phase0.timeseries.time_phase')
tan_theta_sol = a + b * t

a = sim.get_val('traj.phase0.parameters:a_ctrl')
b = sim.get_val('traj.phase0.parameters:b_ctrl')
t = sim.get_val('traj.phase0.timeseries.time_phase')
tan_theta_sim = a + b * t

param_ax.plot(sol.get_val('traj.phase0.timeseries.time'),
tan_theta_sol,
marker='o',
ms=4,
linestyle='None')

param_ax.plot(sim.get_val('traj.phase0.timeseries.time'),
tan_theta_sim,
linestyle='-',
marker=None)

param_ax.set_xlabel('time (s)')
param_ax.set_ylabel(r'$tan(\theta)$')
param_ax.grid(True)

plt.suptitle('Single Stage to Orbit Solution Using Linear Tangent Control')
fig.legend(loc='lower center', ncol=2)

plt.show()


## References#

[ALGuzmanP14]

James M Longuski, José J Guzmán, and John E Prussing. Optimal control with aerospace applications. Springer, 1 edition, 2014. ISBN 978-1-4939-4917-5. doi:https://doi.org/10.1007/978-1-4614-8945-0.
