# The Hull Problem#

The Hull problem is a 1-DOF optimal control problem [Hul03]. It can be stated as:

Minimize the control effort required to move a frictionless sliding block from some initial position such that the final displacement from a pre-specified point is minimized.

## State and control variables#

This system has one state variables, the position ($$x$$) of the sliding block.

This system has a single control variable ($$u$$), the velocity of the block.

The dynamics of the system are governed by

(48)#\begin{align} \dot{x} &= u \end{align}

## Problem Definition#

We seek to minimize the control effort required and minimize the displacement from the origin.

(49)#\begin{align} \mathrm{Minimize} \, J &= 2.5x_f^2 \, + \, 0.5 \int_0^1 u^2 dt \end{align}

Subject to the initial conditions

(50)#\begin{align} t_0 &= 0.0 \\ x_0 &= 1.5 \end{align}

and the terminal constraints

(51)#\begin{align} t_f &= 10.0 \end{align}

## Dealing with combined terminal and integral costs in Dymos#

In classic optimal control, the objective is often broken into the terminal component (the Mayer term) and the integral component (the Lagrange term). Dymos does not distinguish between the two. In this case, since the objective $$J$$ consists of both a terminal cost and an integrated cost (Bolza form), we add a term to the ODE to account for the integrated quantity

(52)#\begin{align} \dot{x_L} &= L \\ L &= 0.5 u^2 \end{align}

where $$x_L$$ is a state added to account for the Lagrange term.

Dymos supports the definition of simple mathematical expressions as the cost, so the final value of $$x_L$$ can be added to the final value of $$2.5x^2$$.

## Defining the ODE#

The following code implements the equations of motion for the Hull problem. Since the rate of $$x$$ is given by a control ($$u$$), there is no need to compute its rate in the ODE. Dymos can pull their values from those other states and controls. The ODE, therefore, only needs to compute the rate of change of $$x_L$$ ($$L$$).

A few things to note:

1. By providing the tag dymos.state_rate_source:{name}, we’re letting Dymos know what states need to be integrated, there’s no need to specify a rate source when using this ODE in our Phase.

2. Pairing the above tag with dymos.state_units:{units} means we don’t have to specify units when setting properties for the state in our run script.

import numpy as np
import openmdao.api as om

class HullProblemODE(om.ExplicitComponent):
def initialize(self):
self.options.declare('num_nodes', types=int)

def setup(self):
nn = self.options['num_nodes']

# Setup partials
self.declare_partials(of='L', wrt='u', rows=np.arange(nn), cols=np.arange(nn))

def compute(self, inputs, outputs, discrete_inputs=None, discrete_outputs=None):
u = inputs['u']

outputs['L'] = 0.5 * u ** 2

def compute_partials(self, inputs, partials, discrete_inputs=None):
u = inputs['u']
partials['L', 'u'] = u


## Solving the Hull problem with Dymos#

The following script solves the Hull problem with Dymos.

To begin, import the packages we require:

import dymos as dm
import matplotlib.pyplot as plt


We then instantiate an OpenMDAO problem and set the optimizer and its options.

The call to declare_coloring tells the optimizer to attempt to find a sparsity pattern that minimizes the work required to compute the derivatives across the model.

#
# Initialize the Problem and the optimization driver
#
p = om.Problem()

p.driver = om.pyOptSparseDriver()
p.driver.declare_coloring()


Next, we add a Dymos Trajectory group to the problem’s model and add a phase to it.

In this case we’re using the Radau pseudospectral transcription to solve the problem.

#
# Create a trajectory and add a phase to it
#


At this point, we set the options on the main variables used in a Dymos phase.

In addition to time, we have two states (x, and x_L) and a single control (u).

Here we use bounds on the states themselves to constrain the initial values of x and1 x_L. From an optimization perspective, this means that we are removing the first and last values in the state histories of $$x$$ and $$x_L$$ from the vector of design variables. Their initial values will remain unchanged throughout the optimization process.

On the other hand, we could specify fix_initial=False, fix_final=False for these values, and Dymos would be free to change them. We would then need to put a boundary constraint in place to enforce their final values. Feel free to experiment with different ways of enforcing the boundary constraints on this problem and see how it affects performance.

The scaler values (ref) are all set to 1 here.

Also, we don’t need to specify targets for any of the variables here because their names are the targets in the top-level of the model. The rate source and units for the states are obtained from the tags in the ODE component we previously defined.

#
# Set the variables
#
phase.set_time_options(fix_initial=True, fix_duration=True)

phase.set_time_options(fix_initial=True, fix_duration=True)

#
# Minimize time at the end of the phase
#

#
# Setup the Problem
#
p.setup()

--- Constraint Report [traj] ---
--- phase0 ---
None

<openmdao.core.problem.Problem at 0x7fbfb0e9be50>


We then set the initial guesses for the variables in the problem and solve it.

We’re using the phase interp method to provide initial guesses for the states and controls. In this case, by giving it two values, it is linearly interpolating from the first value to the second value, and then returning the interpolated value at the input nodes for the given variable.

Finally, we use the dymos.run_problem method to execute the problem. This interface allows us to do some things that the standard OpenMDAO problem.run_driver interface does not. It will automatically record the final solution achieved by the optimizer in case named 'final' in a file called dymos_solution.db. By specifying simulate=True, it will automatically follow the solution with an explicit integration using scipy.solve_ivp. The results of the simulation are stored in a case named final in the file dymos_simulation.db. This explicit simulation demonstrates how the system evolved with the given controls, and serves as a check that we’re using a dense enough grid (enough segments and segments of sufficient order) to accurately represent the solution.

If those two solution didn’t agree reasonably well, we could rerun the problem with a more dense grid. Instead, we’re asking Dymos to automatically change the grid if necessary by specifying refine_method='ph'. This will attempt to repeatedly solve the problem and change the number of segments and segment orders until the solution is in reasonable agreement.

#
# Set the initial values
#
p.set_val('traj.phase0.states:x', phase.interp('x', [1.5, 1]))
p.set_val('traj.phase0.states:xL', phase.interp('xL', [0, 1]))
p.set_val('traj.phase0.t_initial', 0)
p.set_val('traj.phase0.t_duration', 10)
p.set_val('traj.phase0.controls:u', phase.interp('u', [-7, -0.14]))
#
# Solve for the optimal trajectory
#
dm.run_problem(p, run_driver=True, simulate=True)

Hide code cell output
Model viewer data has already been recorded for Driver.
Model viewer data has already been recorded for Driver.

Full total jacobian was computed 3 times, taking 0.260618 seconds.
Total jacobian shape: (191, 216)

Jacobian shape: (191, 216)  ( 2.29% nonzero)
FWD solves: 7   REV solves: 0
Total colors vs. total size: 7 vs 216  (96.8% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.260618 sec.
Time to compute coloring: 0.110012 sec.
Memory to compute coloring: 0.375000 MB.

Optimization Problem -- Optimization using pyOpt_sparse
================================================================================
Objective Function: _objfunc

Solution:
--------------------------------------------------------------------------------
Total Time:                    3.2371
User Objective Time :       0.1091
User Sensitivity Time :     0.4655
Interface Time :            0.3022
Opt Solver Time:            2.3602
Calls to Objective Function :      66
Calls to Sens Function :           65

Objectives
Index  Name                                                            Value
0  traj.phases.phase0.timeseries.timeseries_exec_comp.J     1.102952E-01

Variables (c - continuous, i - integer, d - discrete)
Index  Name                                                            Type      Lower Bound            Value      Upper Bound     Status
0  traj.phases.phase0.indep_states.states:x_0                         c    -1.000000E+21     1.478271E+00     1.000000E+21
1  traj.phases.phase0.indep_states.states:x_1                         c    -1.000000E+21     1.448524E+00     1.000000E+21
2  traj.phases.phase0.indep_states.states:x_2                         c    -1.000000E+21     1.439054E+00     1.000000E+21
3  traj.phases.phase0.indep_states.states:x_3                         c    -1.000000E+21     1.417155E+00     1.000000E+21
4  traj.phases.phase0.indep_states.states:x_4                         c    -1.000000E+21     1.386794E+00     1.000000E+21
5  traj.phases.phase0.indep_states.states:x_5                         c    -1.000000E+21     1.377242E+00     1.000000E+21
6  traj.phases.phase0.indep_states.states:x_6                         c    -1.000000E+21     1.355564E+00     1.000000E+21
7  traj.phases.phase0.indep_states.states:x_7                         c    -1.000000E+21     1.325823E+00     1.000000E+21
8  traj.phases.phase0.indep_states.states:x_8                         c    -1.000000E+21     1.316376E+00     1.000000E+21
9  traj.phases.phase0.indep_states.states:x_9                         c    -1.000000E+21     1.294605E+00     1.000000E+21
10  traj.phases.phase0.indep_states.states:x_10                        c    -1.000000E+21     1.264427E+00     1.000000E+21
11  traj.phases.phase0.indep_states.states:x_11                        c    -1.000000E+21     1.254893E+00     1.000000E+21
12  traj.phases.phase0.indep_states.states:x_12                        c    -1.000000E+21     1.233142E+00     1.000000E+21
13  traj.phases.phase0.indep_states.states:x_13                        c    -1.000000E+21     1.203187E+00     1.000000E+21
14  traj.phases.phase0.indep_states.states:x_14                        c    -1.000000E+21     1.193684E+00     1.000000E+21
15  traj.phases.phase0.indep_states.states:x_15                        c    -1.000000E+21     1.171848E+00     1.000000E+21
16  traj.phases.phase0.indep_states.states:x_16                        c    -1.000000E+21     1.141677E+00     1.000000E+21
17  traj.phases.phase0.indep_states.states:x_17                        c    -1.000000E+21     1.132152E+00     1.000000E+21
18  traj.phases.phase0.indep_states.states:x_18                        c    -1.000000E+21     1.110416E+00     1.000000E+21
19  traj.phases.phase0.indep_states.states:x_19                        c    -1.000000E+21     1.080503E+00     1.000000E+21
20  traj.phases.phase0.indep_states.states:x_20                        c    -1.000000E+21     1.071028E+00     1.000000E+21
21  traj.phases.phase0.indep_states.states:x_21                        c    -1.000000E+21     1.049286E+00     1.000000E+21
22  traj.phases.phase0.indep_states.states:x_22                        c    -1.000000E+21     1.019250E+00     1.000000E+21
23  traj.phases.phase0.indep_states.states:x_23                        c    -1.000000E+21     1.009752E+00     1.000000E+21
24  traj.phases.phase0.indep_states.states:x_24                        c    -1.000000E+21     9.880351E-01     1.000000E+21
25  traj.phases.phase0.indep_states.states:x_25                        c    -1.000000E+21     9.581003E-01     1.000000E+21
26  traj.phases.phase0.indep_states.states:x_26                        c    -1.000000E+21     9.486212E-01     1.000000E+21
27  traj.phases.phase0.indep_states.states:x_27                        c    -1.000000E+21     9.268933E-01     1.000000E+21
28  traj.phases.phase0.indep_states.states:x_28                        c    -1.000000E+21     8.968904E-01     1.000000E+21
29  traj.phases.phase0.indep_states.states:x_29                        c    -1.000000E+21     8.873965E-01     1.000000E+21
30  traj.phases.phase0.indep_states.states:x_30                        c    -1.000000E+21     8.656686E-01     1.000000E+21
31  traj.phases.phase0.indep_states.states:x_31                        c    -1.000000E+21     8.357020E-01     1.000000E+21
32  traj.phases.phase0.indep_states.states:x_32                        c    -1.000000E+21     8.262171E-01     1.000000E+21
33  traj.phases.phase0.indep_states.states:x_33                        c    -1.000000E+21     8.044917E-01     1.000000E+21
34  traj.phases.phase0.indep_states.states:x_34                        c    -1.000000E+21     7.745071E-01     1.000000E+21
35  traj.phases.phase0.indep_states.states:x_35                        c    -1.000000E+21     7.650165E-01     1.000000E+21
36  traj.phases.phase0.indep_states.states:x_36                        c    -1.000000E+21     7.432809E-01     1.000000E+21
37  traj.phases.phase0.indep_states.states:x_37                        c    -1.000000E+21     7.132456E-01     1.000000E+21
38  traj.phases.phase0.indep_states.states:x_38                        c    -1.000000E+21     7.037192E-01     1.000000E+21
39  traj.phases.phase0.indep_states.states:x_39                        c    -1.000000E+21     6.818614E-01     1.000000E+21
40  traj.phases.phase0.indep_states.states:x_40                        c    -1.000000E+21     6.516597E-01     1.000000E+21
41  traj.phases.phase0.indep_states.states:x_41                        c    -1.000000E+21     6.421056E-01     1.000000E+21
42  traj.phases.phase0.indep_states.states:x_42                        c    -1.000000E+21     6.202547E-01     1.000000E+21
43  traj.phases.phase0.indep_states.states:x_43                        c    -1.000000E+21     5.901571E-01     1.000000E+21
44  traj.phases.phase0.indep_states.states:x_44                        c    -1.000000E+21     5.806407E-01     1.000000E+21
45  traj.phases.phase0.indep_states.states:x_45                        c    -1.000000E+21     5.588615E-01     1.000000E+21
46  traj.phases.phase0.indep_states.states:x_46                        c    -1.000000E+21     5.288345E-01     1.000000E+21
47  traj.phases.phase0.indep_states.states:x_47                        c    -1.000000E+21     5.193360E-01     1.000000E+21
48  traj.phases.phase0.indep_states.states:x_48                        c    -1.000000E+21     4.975909E-01     1.000000E+21
49  traj.phases.phase0.indep_states.states:x_49                        c    -1.000000E+21     4.675790E-01     1.000000E+21
50  traj.phases.phase0.indep_states.states:x_50                        c    -1.000000E+21     4.580733E-01     1.000000E+21
51  traj.phases.phase0.indep_states.states:x_51                        c    -1.000000E+21     4.362877E-01     1.000000E+21
52  traj.phases.phase0.indep_states.states:x_52                        c    -1.000000E+21     4.061967E-01     1.000000E+21
53  traj.phases.phase0.indep_states.states:x_53                        c    -1.000000E+21     3.966684E-01     1.000000E+21
54  traj.phases.phase0.indep_states.states:x_54                        c    -1.000000E+21     3.748501E-01     1.000000E+21
55  traj.phases.phase0.indep_states.states:x_55                        c    -1.000000E+21     3.447892E-01     1.000000E+21
56  traj.phases.phase0.indep_states.states:x_56                        c    -1.000000E+21     3.352962E-01     1.000000E+21
57  traj.phases.phase0.indep_states.states:x_57                        c    -1.000000E+21     3.136003E-01     1.000000E+21
58  traj.phases.phase0.indep_states.states:x_58                        c    -1.000000E+21     2.836652E-01     1.000000E+21
59  traj.phases.phase0.indep_states.states:x_59                        c    -1.000000E+21     2.741664E-01     1.000000E+21
60  traj.phases.phase0.indep_states.states:x_60                        c    -1.000000E+21     2.523507E-01     1.000000E+21
61  traj.phases.phase0.indep_states.states:x_61                        c    -1.000000E+21     2.222161E-01     1.000000E+21
62  traj.phases.phase0.indep_states.states:x_62                        c    -1.000000E+21     2.127007E-01     1.000000E+21
63  traj.phases.phase0.indep_states.states:x_63                        c    -1.000000E+21     1.909824E-01     1.000000E+21
64  traj.phases.phase0.indep_states.states:x_64                        c    -1.000000E+21     1.610963E-01     1.000000E+21
65  traj.phases.phase0.indep_states.states:x_65                        c    -1.000000E+21     1.516347E-01     1.000000E+21
66  traj.phases.phase0.indep_states.states:x_66                        c    -1.000000E+21     1.299375E-01     1.000000E+21
67  traj.phases.phase0.indep_states.states:x_67                        c    -1.000000E+21     9.996178E-02     1.000000E+21
68  traj.phases.phase0.indep_states.states:x_68                        c    -1.000000E+21     9.047482E-02     1.000000E+21
69  traj.phases.phase0.indep_states.states:x_69                        c    -1.000000E+21     6.876274E-02     1.000000E+21
70  traj.phases.phase0.indep_states.states:x_70                        c    -1.000000E+21     3.882258E-02     1.000000E+21
71  traj.phases.phase0.indep_states.states:x_71                        c    -1.000000E+21     2.934811E-02     1.000000E+21
72  traj.phases.phase0.indep_states.states:xL_0                        c    -1.000000E+21     1.595767E-03     1.000000E+21
73  traj.phases.phase0.indep_states.states:xL_1                        c    -1.000000E+21     3.763248E-03     1.000000E+21
74  traj.phases.phase0.indep_states.states:xL_2                        c    -1.000000E+21     4.457413E-03     1.000000E+21
75  traj.phases.phase0.indep_states.states:xL_3                        c    -1.000000E+21     6.078314E-03     1.000000E+21
76  traj.phases.phase0.indep_states.states:xL_4                        c    -1.000000E+21     8.336200E-03     1.000000E+21
77  traj.phases.phase0.indep_states.states:xL_5                        c    -1.000000E+21     9.042362E-03     1.000000E+21
78  traj.phases.phase0.indep_states.states:xL_6                        c    -1.000000E+21     1.063069E-02     1.000000E+21
79  traj.phases.phase0.indep_states.states:xL_7                        c    -1.000000E+21     1.279729E-02     1.000000E+21
80  traj.phases.phase0.indep_states.states:xL_8                        c    -1.000000E+21     1.348791E-02     1.000000E+21
81  traj.phases.phase0.indep_states.states:xL_9                        c    -1.000000E+21     1.508993E-02     1.000000E+21
82  traj.phases.phase0.indep_states.states:xL_10                       c    -1.000000E+21     1.732064E-02     1.000000E+21
83  traj.phases.phase0.indep_states.states:xL_11                       c    -1.000000E+21     1.802420E-02     1.000000E+21
84  traj.phases.phase0.indep_states.states:xL_12                       c    -1.000000E+21     1.962315E-02     1.000000E+21
85  traj.phases.phase0.indep_states.states:xL_13                       c    -1.000000E+21     2.182112E-02     1.000000E+21
86  traj.phases.phase0.indep_states.states:xL_14                       c    -1.000000E+21     2.252006E-02     1.000000E+21
87  traj.phases.phase0.indep_states.states:xL_15                       c    -1.000000E+21     2.413150E-02     1.000000E+21
88  traj.phases.phase0.indep_states.states:xL_16                       c    -1.000000E+21     2.636126E-02     1.000000E+21
89  traj.phases.phase0.indep_states.states:xL_17                       c    -1.000000E+21     2.706348E-02     1.000000E+21
90  traj.phases.phase0.indep_states.states:xL_18                       c    -1.000000E+21     2.866017E-02     1.000000E+21
91  traj.phases.phase0.indep_states.states:xL_19                       c    -1.000000E+21     3.085194E-02     1.000000E+21
92  traj.phases.phase0.indep_states.states:xL_20                       c    -1.000000E+21     3.154682E-02     1.000000E+21
93  traj.phases.phase0.indep_states.states:xL_21                       c    -1.000000E+21     3.314444E-02     1.000000E+21
94  traj.phases.phase0.indep_states.states:xL_22                       c    -1.000000E+21     3.535428E-02     1.000000E+21
95  traj.phases.phase0.indep_states.states:xL_23                       c    -1.000000E+21     3.605249E-02     1.000000E+21
96  traj.phases.phase0.indep_states.states:xL_24                       c    -1.000000E+21     3.764650E-02     1.000000E+21
97  traj.phases.phase0.indep_states.states:xL_25                       c    -1.000000E+21     3.984146E-02     1.000000E+21
98  traj.phases.phase0.indep_states.states:xL_26                       c    -1.000000E+21     4.053686E-02     1.000000E+21
99  traj.phases.phase0.indep_states.states:xL_27                       c    -1.000000E+21     4.213246E-02     1.000000E+21
100  traj.phases.phase0.indep_states.states:xL_28                       c    -1.000000E+21     4.433741E-02     1.000000E+21
101  traj.phases.phase0.indep_states.states:xL_29                       c    -1.000000E+21     4.503499E-02     1.000000E+21
102  traj.phases.phase0.indep_states.states:xL_30                       c    -1.000000E+21     4.663060E-02     1.000000E+21
103  traj.phases.phase0.indep_states.states:xL_31                       c    -1.000000E+21     4.883023E-02     1.000000E+21
104  traj.phases.phase0.indep_states.states:xL_32                       c    -1.000000E+21     4.952649E-02     1.000000E+21
105  traj.phases.phase0.indep_states.states:xL_33                       c    -1.000000E+21     5.112172E-02     1.000000E+21
106  traj.phases.phase0.indep_states.states:xL_34                       c    -1.000000E+21     5.332400E-02     1.000000E+21
107  traj.phases.phase0.indep_states.states:xL_35                       c    -1.000000E+21     5.402108E-02     1.000000E+21
108  traj.phases.phase0.indep_states.states:xL_36                       c    -1.000000E+21     5.561780E-02     1.000000E+21
109  traj.phases.phase0.indep_states.states:xL_37                       c    -1.000000E+21     5.782753E-02     1.000000E+21
110  traj.phases.phase0.indep_states.states:xL_38                       c    -1.000000E+21     5.852989E-02     1.000000E+21
111  traj.phases.phase0.indep_states.states:xL_39                       c    -1.000000E+21     6.014464E-02     1.000000E+21
112  traj.phases.phase0.indep_states.states:xL_40                       c    -1.000000E+21     6.237891E-02     1.000000E+21
113  traj.phases.phase0.indep_states.states:xL_41                       c    -1.000000E+21     6.308537E-02     1.000000E+21
114  traj.phases.phase0.indep_states.states:xL_42                       c    -1.000000E+21     6.469909E-02     1.000000E+21
115  traj.phases.phase0.indep_states.states:xL_43                       c    -1.000000E+21     6.691798E-02     1.000000E+21
116  traj.phases.phase0.indep_states.states:xL_44                       c    -1.000000E+21     6.761887E-02     1.000000E+21
117  traj.phases.phase0.indep_states.states:xL_45                       c    -1.000000E+21     6.922202E-02     1.000000E+21
118  traj.phases.phase0.indep_states.states:xL_46                       c    -1.000000E+21     7.143053E-02     1.000000E+21
119  traj.phases.phase0.indep_states.states:xL_47                       c    -1.000000E+21     7.212878E-02     1.000000E+21
120  traj.phases.phase0.indep_states.states:xL_48                       c    -1.000000E+21     7.372692E-02     1.000000E+21
121  traj.phases.phase0.indep_states.states:xL_49                       c    -1.000000E+21     7.593320E-02     1.000000E+21
122  traj.phases.phase0.indep_states.states:xL_50                       c    -1.000000E+21     7.663252E-02     1.000000E+21
123  traj.phases.phase0.indep_states.states:xL_51                       c    -1.000000E+21     7.823661E-02     1.000000E+21
124  traj.phases.phase0.indep_states.states:xL_52                       c    -1.000000E+21     8.045454E-02     1.000000E+21
125  traj.phases.phase0.indep_states.states:xL_53                       c    -1.000000E+21     8.115719E-02     1.000000E+21
126  traj.phases.phase0.indep_states.states:xL_54                       c    -1.000000E+21     8.276610E-02     1.000000E+21
127  traj.phases.phase0.indep_states.states:xL_55                       c    -1.000000E+21     8.497961E-02     1.000000E+21
128  traj.phases.phase0.indep_states.states:xL_56                       c    -1.000000E+21     8.567705E-02     1.000000E+21
129  traj.phases.phase0.indep_states.states:xL_57                       c    -1.000000E+21     8.726795E-02     1.000000E+21
130  traj.phases.phase0.indep_states.states:xL_58                       c    -1.000000E+21     8.946296E-02     1.000000E+21
131  traj.phases.phase0.indep_states.states:xL_59                       c    -1.000000E+21     9.016126E-02     1.000000E+21
132  traj.phases.phase0.indep_states.states:xL_60                       c    -1.000000E+21     9.176979E-02     1.000000E+21
133  traj.phases.phase0.indep_states.states:xL_61                       c    -1.000000E+21     9.399414E-02     1.000000E+21
134  traj.phases.phase0.indep_states.states:xL_62                       c    -1.000000E+21     9.469488E-02     1.000000E+21
135  traj.phases.phase0.indep_states.states:xL_63                       c    -1.000000E+21     9.628902E-02     1.000000E+21
136  traj.phases.phase0.indep_states.states:xL_64                       c    -1.000000E+21     9.847679E-02     1.000000E+21
137  traj.phases.phase0.indep_states.states:xL_65                       c    -1.000000E+21     9.916964E-02     1.000000E+21
138  traj.phases.phase0.indep_states.states:xL_66                       c    -1.000000E+21     1.007607E-01     1.000000E+21
139  traj.phases.phase0.indep_states.states:xL_67                       c    -1.000000E+21     1.029616E-01     1.000000E+21
140  traj.phases.phase0.indep_states.states:xL_68                       c    -1.000000E+21     1.036582E-01     1.000000E+21
141  traj.phases.phase0.indep_states.states:xL_69                       c    -1.000000E+21     1.052515E-01     1.000000E+21
142  traj.phases.phase0.indep_states.states:xL_70                       c    -1.000000E+21     1.074472E-01     1.000000E+21
143  traj.phases.phase0.indep_states.states:xL_71                       c    -1.000000E+21     1.081419E-01     1.000000E+21
144  traj.phases.phase0.control_group.indep_controls.controls:u_0       c    -1.000000E+21    -1.481643E-01     1.000000E+21
145  traj.phases.phase0.control_group.indep_controls.controls:u_1       c    -1.000000E+21    -1.459267E-01     1.000000E+21
146  traj.phases.phase0.control_group.indep_controls.controls:u_2       c    -1.000000E+21    -1.461810E-01     1.000000E+21
147  traj.phases.phase0.control_group.indep_controls.controls:u_3       c    -1.000000E+21    -1.470687E-01     1.000000E+21
148  traj.phases.phase0.control_group.indep_controls.controls:u_4       c    -1.000000E+21    -1.487109E-01     1.000000E+21
149  traj.phases.phase0.control_group.indep_controls.controls:u_5       c    -1.000000E+21    -1.482349E-01     1.000000E+21
150  traj.phases.phase0.control_group.indep_controls.controls:u_6       c    -1.000000E+21    -1.474218E-01     1.000000E+21
151  traj.phases.phase0.control_group.indep_controls.controls:u_7       c    -1.000000E+21    -1.458725E-01     1.000000E+21
152  traj.phases.phase0.control_group.indep_controls.controls:u_8       c    -1.000000E+21    -1.459583E-01     1.000000E+21
153  traj.phases.phase0.control_group.indep_controls.controls:u_9       c    -1.000000E+21    -1.465227E-01     1.000000E+21
154  traj.phases.phase0.control_group.indep_controls.controls:u_10      c    -1.000000E+21    -1.476574E-01     1.000000E+21
155  traj.phases.phase0.control_group.indep_controls.controls:u_11      c    -1.000000E+21    -1.477346E-01     1.000000E+21
156  traj.phases.phase0.control_group.indep_controls.controls:u_12      c    -1.000000E+21    -1.473995E-01     1.000000E+21
157  traj.phases.phase0.control_group.indep_controls.controls:u_13      c    -1.000000E+21    -1.467599E-01     1.000000E+21
158  traj.phases.phase0.control_group.indep_controls.controls:u_14      c    -1.000000E+21    -1.469477E-01     1.000000E+21
159  traj.phases.phase0.control_group.indep_controls.controls:u_15      c    -1.000000E+21    -1.472657E-01     1.000000E+21
160  traj.phases.phase0.control_group.indep_controls.controls:u_16      c    -1.000000E+21    -1.478279E-01     1.000000E+21
161  traj.phases.phase0.control_group.indep_controls.controls:u_17      c    -1.000000E+21    -1.475920E-01     1.000000E+21
162  traj.phases.phase0.control_group.indep_controls.controls:u_18      c    -1.000000E+21    -1.472729E-01     1.000000E+21
163  traj.phases.phase0.control_group.indep_controls.controls:u_19      c    -1.000000E+21    -1.466506E-01     1.000000E+21
164  traj.phases.phase0.control_group.indep_controls.controls:u_20      c    -1.000000E+21    -1.465902E-01     1.000000E+21
165  traj.phases.phase0.control_group.indep_controls.controls:u_21      c    -1.000000E+21    -1.467639E-01     1.000000E+21
166  traj.phases.phase0.control_group.indep_controls.controls:u_22      c    -1.000000E+21    -1.471121E-01     1.000000E+21
167  traj.phases.phase0.control_group.indep_controls.controls:u_23      c    -1.000000E+21    -1.470815E-01     1.000000E+21
168  traj.phases.phase0.control_group.indep_controls.controls:u_24      c    -1.000000E+21    -1.469484E-01     1.000000E+21
169  traj.phases.phase0.control_group.indep_controls.controls:u_25      c    -1.000000E+21    -1.466855E-01     1.000000E+21
170  traj.phases.phase0.control_group.indep_controls.controls:u_26      c    -1.000000E+21    -1.466842E-01     1.000000E+21
171  traj.phases.phase0.control_group.indep_controls.controls:u_27      c    -1.000000E+21    -1.467710E-01     1.000000E+21
172  traj.phases.phase0.control_group.indep_controls.controls:u_28      c    -1.000000E+21    -1.469501E-01     1.000000E+21
173  traj.phases.phase0.control_group.indep_controls.controls:u_29      c    -1.000000E+21    -1.469742E-01     1.000000E+21
174  traj.phases.phase0.control_group.indep_controls.controls:u_30      c    -1.000000E+21    -1.469280E-01     1.000000E+21
175  traj.phases.phase0.control_group.indep_controls.controls:u_31      c    -1.000000E+21    -1.468278E-01     1.000000E+21
176  traj.phases.phase0.control_group.indep_controls.controls:u_32      c    -1.000000E+21    -1.468058E-01     1.000000E+21
177  traj.phases.phase0.control_group.indep_controls.controls:u_33      c    -1.000000E+21    -1.468269E-01     1.000000E+21
178  traj.phases.phase0.control_group.indep_controls.controls:u_34      c    -1.000000E+21    -1.468773E-01     1.000000E+21
179  traj.phases.phase0.control_group.indep_controls.controls:u_35      c    -1.000000E+21    -1.469029E-01     1.000000E+21
180  traj.phases.phase0.control_group.indep_controls.controls:u_36      c    -1.000000E+21    -1.469004E-01     1.000000E+21
181  traj.phases.phase0.control_group.indep_controls.controls:u_37      c    -1.000000E+21    -1.469755E-01     1.000000E+21
182  traj.phases.phase0.control_group.indep_controls.controls:u_38      c    -1.000000E+21    -1.473643E-01     1.000000E+21
183  traj.phases.phase0.control_group.indep_controls.controls:u_39      c    -1.000000E+21    -1.475562E-01     1.000000E+21
184  traj.phases.phase0.control_group.indep_controls.controls:u_40      c    -1.000000E+21    -1.478991E-01     1.000000E+21
185  traj.phases.phase0.control_group.indep_controls.controls:u_41      c    -1.000000E+21    -1.479304E-01     1.000000E+21
186  traj.phases.phase0.control_group.indep_controls.controls:u_42      c    -1.000000E+21    -1.478336E-01     1.000000E+21
187  traj.phases.phase0.control_group.indep_controls.controls:u_43      c    -1.000000E+21    -1.475823E-01     1.000000E+21
188  traj.phases.phase0.control_group.indep_controls.controls:u_44      c    -1.000000E+21    -1.473310E-01     1.000000E+21
189  traj.phases.phase0.control_group.indep_controls.controls:u_45      c    -1.000000E+21    -1.472745E-01     1.000000E+21
190  traj.phases.phase0.control_group.indep_controls.controls:u_46      c    -1.000000E+21    -1.471658E-01     1.000000E+21
191  traj.phases.phase0.control_group.indep_controls.controls:u_47      c    -1.000000E+21    -1.470419E-01     1.000000E+21
192  traj.phases.phase0.control_group.indep_controls.controls:u_48      c    -1.000000E+21    -1.470089E-01     1.000000E+21
193  traj.phases.phase0.control_group.indep_controls.controls:u_49      c    -1.000000E+21    -1.469835E-01     1.000000E+21
194  traj.phases.phase0.control_group.indep_controls.controls:u_50      c    -1.000000E+21    -1.471012E-01     1.000000E+21
195  traj.phases.phase0.control_group.indep_controls.controls:u_51      c    -1.000000E+21    -1.471754E-01     1.000000E+21
196  traj.phases.phase0.control_group.indep_controls.controls:u_52      c    -1.000000E+21    -1.473385E-01     1.000000E+21
197  traj.phases.phase0.control_group.indep_controls.controls:u_53      c    -1.000000E+21    -1.474746E-01     1.000000E+21
198  traj.phases.phase0.control_group.indep_controls.controls:u_54      c    -1.000000E+21    -1.474962E-01     1.000000E+21
199  traj.phases.phase0.control_group.indep_controls.controls:u_55      c    -1.000000E+21    -1.474371E-01     1.000000E+21
200  traj.phases.phase0.control_group.indep_controls.controls:u_56      c    -1.000000E+21    -1.470377E-01     1.000000E+21
201  traj.phases.phase0.control_group.indep_controls.controls:u_57      c    -1.000000E+21    -1.468346E-01     1.000000E+21
202  traj.phases.phase0.control_group.indep_controls.controls:u_58      c    -1.000000E+21    -1.465508E-01     1.000000E+21
203  traj.phases.phase0.control_group.indep_controls.controls:u_59      c    -1.000000E+21    -1.468941E-01     1.000000E+21
204  traj.phases.phase0.control_group.indep_controls.controls:u_60      c    -1.000000E+21    -1.471802E-01     1.000000E+21
205  traj.phases.phase0.control_group.indep_controls.controls:u_61      c    -1.000000E+21    -1.476597E-01     1.000000E+21
206  traj.phases.phase0.control_group.indep_controls.controls:u_62      c    -1.000000E+21    -1.474240E-01     1.000000E+21
207  traj.phases.phase0.control_group.indep_controls.controls:u_63      c    -1.000000E+21    -1.471326E-01     1.000000E+21
208  traj.phases.phase0.control_group.indep_controls.controls:u_64      c    -1.000000E+21    -1.465477E-01     1.000000E+21
209  traj.phases.phase0.control_group.indep_controls.controls:u_65      c    -1.000000E+21    -1.464033E-01     1.000000E+21
210  traj.phases.phase0.control_group.indep_controls.controls:u_66      c    -1.000000E+21    -1.465177E-01     1.000000E+21
211  traj.phases.phase0.control_group.indep_controls.controls:u_67      c    -1.000000E+21    -1.467820E-01     1.000000E+21
212  traj.phases.phase0.control_group.indep_controls.controls:u_68      c    -1.000000E+21    -1.468647E-01     1.000000E+21
213  traj.phases.phase0.control_group.indep_controls.controls:u_69      c    -1.000000E+21    -1.468228E-01     1.000000E+21
214  traj.phases.phase0.control_group.indep_controls.controls:u_70      c    -1.000000E+21    -1.467156E-01     1.000000E+21
215  traj.phases.phase0.control_group.indep_controls.controls:u_71      c    -1.000000E+21    -1.466535E-01     1.000000E+21

Constraints (i - inequality, e - equality)
Index  Name                                                           Type          Lower           Value           Upper    Status  Lagrange Multiplier (N/A)
0  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    6.823246E-16    0.000000E+00              9.00000E+100
1  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.098658E-16    0.000000E+00              9.00000E+100
2  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    8.095376E-16    0.000000E+00              9.00000E+100
3  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    9.020562E-16    0.000000E+00              9.00000E+100
4  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -4.163336E-16    0.000000E+00              9.00000E+100
5  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.098658E-16    0.000000E+00              9.00000E+100
6  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    6.765422E-16    0.000000E+00              9.00000E+100
7  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.989864E-16    0.000000E+00              9.00000E+100
8  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.295975E-16    0.000000E+00              9.00000E+100
9  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -6.476301E-16    0.000000E+00              9.00000E+100
10  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.792548E-16    0.000000E+00              9.00000E+100
11  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.989864E-16    0.000000E+00              9.00000E+100
12  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -5.204170E-17    0.000000E+00              9.00000E+100
13  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    8.095376E-17    0.000000E+00              9.00000E+100
14  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.619075E-16    0.000000E+00              9.00000E+100
15  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.932040E-16    0.000000E+00              9.00000E+100
16  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.486437E-16    0.000000E+00              9.00000E+100
17  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -7.228014E-16    0.000000E+00              9.00000E+100
18  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.370789E-16    0.000000E+00              9.00000E+100
19  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.312965E-17    0.000000E+00              9.00000E+100
20  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.156482E-16    0.000000E+00              9.00000E+100
21  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.717733E-16    0.000000E+00              9.00000E+100
22  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.040834E-16    0.000000E+00              9.00000E+100
23  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    4.278985E-16    0.000000E+00              9.00000E+100
24  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    3.642919E-16    0.000000E+00              9.00000E+100
25  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.619075E-16    0.000000E+00              9.00000E+100
26  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    3.238150E-16    0.000000E+00              9.00000E+100
27  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    5.782412E-17    0.000000E+00              9.00000E+100
28  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.370789E-16    0.000000E+00              9.00000E+100
29  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -7.517135E-17    0.000000E+00              9.00000E+100
30  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    4.683753E-16    0.000000E+00              9.00000E+100
31  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -4.625929E-17    0.000000E+00              9.00000E+100
32  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.272131E-16    0.000000E+00              9.00000E+100
33  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.602085E-16    0.000000E+00              9.00000E+100
34  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.792548E-16    0.000000E+00              9.00000E+100
35  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.544261E-16    0.000000E+00              9.00000E+100
36  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.908196E-16    0.000000E+00              9.00000E+100
37  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.370789E-16    0.000000E+00              9.00000E+100
38  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    4.047688E-17    0.000000E+00              9.00000E+100
39  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    4.915050E-16    0.000000E+00              9.00000E+100
40  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.486437E-16    0.000000E+00              9.00000E+100
41  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    6.938894E-17    0.000000E+00              9.00000E+100
42  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -6.360653E-17    0.000000E+00              9.00000E+100
43  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -7.517135E-17    0.000000E+00              9.00000E+100
44  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    6.938894E-17    0.000000E+00              9.00000E+100
45  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.850372E-16    0.000000E+00              9.00000E+100
46  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -5.204170E-17    0.000000E+00              9.00000E+100
47  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.908196E-16    0.000000E+00              9.00000E+100
48  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    5.204170E-17    0.000000E+00              9.00000E+100
49  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -8.095376E-17    0.000000E+00              9.00000E+100
50  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.469447E-17    0.000000E+00              9.00000E+100
51  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.445603E-16    0.000000E+00              9.00000E+100
52  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    5.204170E-17    0.000000E+00              9.00000E+100
53  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.312965E-17    0.000000E+00              9.00000E+100
54  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.792548E-16    0.000000E+00              9.00000E+100
55  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.312965E-17    0.000000E+00              9.00000E+100
56  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -6.360653E-17    0.000000E+00              9.00000E+100
57  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.040834E-16    0.000000E+00              9.00000E+100
58  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.891206E-17    0.000000E+00              9.00000E+100
59  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -5.204170E-17    0.000000E+00              9.00000E+100
60  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.833382E-16    0.000000E+00              9.00000E+100
61  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    2.891206E-17    0.000000E+00              9.00000E+100
62  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -5.782412E-18    0.000000E+00              9.00000E+100
63  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    8.095376E-17    0.000000E+00              9.00000E+100
64  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.156482E-17    0.000000E+00              9.00000E+100
65  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -2.891206E-17    0.000000E+00              9.00000E+100
66  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -3.469447E-17    0.000000E+00              9.00000E+100
67  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -1.156482E-17    0.000000E+00              9.00000E+100
68  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    5.782412E-18    0.000000E+00              9.00000E+100
69  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    1.156482E-17    0.000000E+00              9.00000E+100
70  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00   -5.782412E-18    0.000000E+00              9.00000E+100
71  traj.phases.phase0.collocation_constraint.defects:x               e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
72  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.957786E-08    0.000000E+00              9.00000E+100
73  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.817485E-09    0.000000E+00              9.00000E+100
74  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.783996E-09    0.000000E+00              9.00000E+100
75  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.523769E-10    0.000000E+00              9.00000E+100
76  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.904150E-09    0.000000E+00              9.00000E+100
77  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.230688E-10    0.000000E+00              9.00000E+100
78  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.276091E-12    0.000000E+00              9.00000E+100
79  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.033273E-09    0.000000E+00              9.00000E+100
80  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.451230E-09    0.000000E+00              9.00000E+100
81  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.185500E-09    0.000000E+00              9.00000E+100
82  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -3.414816E-09    0.000000E+00              9.00000E+100
83  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.380838E-09    0.000000E+00              9.00000E+100
84  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.514990E-09    0.000000E+00              9.00000E+100
85  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.624644E-09    0.000000E+00              9.00000E+100
86  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.452575E-09    0.000000E+00              9.00000E+100
87  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.260412E-10    0.000000E+00              9.00000E+100
88  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.244325E-11    0.000000E+00              9.00000E+100
89  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.437746E-10    0.000000E+00              9.00000E+100
90  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.208246E-09    0.000000E+00              9.00000E+100
91  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.376859E-09    0.000000E+00              9.00000E+100
92  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.835187E-10    0.000000E+00              9.00000E+100
93  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.854004E-11    0.000000E+00              9.00000E+100
94  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.797048E-10    0.000000E+00              9.00000E+100
95  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.948338E-09    0.000000E+00              9.00000E+100
96  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.201032E-09    0.000000E+00              9.00000E+100
97  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.088727E-09    0.000000E+00              9.00000E+100
98  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.361062E-08    0.000000E+00              9.00000E+100
99  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.513855E-08    0.000000E+00              9.00000E+100
100  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.521925E-08    0.000000E+00              9.00000E+100
101  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.028738E-09    0.000000E+00              9.00000E+100
102  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.706048E-09    0.000000E+00              9.00000E+100
103  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -3.697155E-11    0.000000E+00              9.00000E+100
104  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.119227E-09    0.000000E+00              9.00000E+100
105  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.965907E-09    0.000000E+00              9.00000E+100
106  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.010689E-08    0.000000E+00              9.00000E+100
107  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.454721E-08    0.000000E+00              9.00000E+100
108  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.538908E-08    0.000000E+00              9.00000E+100
109  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.538831E-08    0.000000E+00              9.00000E+100
110  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.069770E-08    0.000000E+00              9.00000E+100
111  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -8.449875E-09    0.000000E+00              9.00000E+100
112  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.494086E-09    0.000000E+00              9.00000E+100
113  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.504802E-09    0.000000E+00              9.00000E+100
114  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.909106E-09    0.000000E+00              9.00000E+100
115  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.380487E-08    0.000000E+00              9.00000E+100
116  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.727812E-09    0.000000E+00              9.00000E+100
117  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.278911E-09    0.000000E+00              9.00000E+100
118  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.497747E-10    0.000000E+00              9.00000E+100
119  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.036258E-09    0.000000E+00              9.00000E+100
120  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.424362E-09    0.000000E+00              9.00000E+100
121  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.901206E-09    0.000000E+00              9.00000E+100
122  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.345116E-09    0.000000E+00              9.00000E+100
123  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.759735E-09    0.000000E+00              9.00000E+100
124  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.331713E-09    0.000000E+00              9.00000E+100
125  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.577901E-10    0.000000E+00              9.00000E+100
126  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -3.330813E-12    0.000000E+00              9.00000E+100
127  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.467180E-10    0.000000E+00              9.00000E+100
128  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.305458E-09    0.000000E+00              9.00000E+100
129  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -8.137966E-09    0.000000E+00              9.00000E+100
130  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.337321E-08    0.000000E+00              9.00000E+100
131  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -9.868175E-09    0.000000E+00              9.00000E+100
132  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -6.685109E-09    0.000000E+00              9.00000E+100
133  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.754703E-09    0.000000E+00              9.00000E+100
134  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -2.683931E-08    0.000000E+00              9.00000E+100
135  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -4.885994E-08    0.000000E+00              9.00000E+100
136  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -8.433180E-08    0.000000E+00              9.00000E+100
137  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.808327E-08    0.000000E+00              9.00000E+100
138  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.922743E-10    0.000000E+00              9.00000E+100
139  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -3.704072E-08    0.000000E+00              9.00000E+100
140  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -7.046201E-08    0.000000E+00              9.00000E+100
141  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -5.471571E-08    0.000000E+00              9.00000E+100
142  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -1.642523E-08    0.000000E+00              9.00000E+100
143  traj.phases.phase0.collocation_constraint.defects:xL              e   0.000000E+00   -8.497096E-10    0.000000E+00              9.00000E+100
144  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.890849E-15    0.000000E+00              9.00000E+100
145  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    5.637851E-16    0.000000E+00              9.00000E+100
146  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -7.372575E-16    0.000000E+00              9.00000E+100
147  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -7.068998E-16    0.000000E+00              9.00000E+100
148  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.331400E-15    0.000000E+00              9.00000E+100
149  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    7.068998E-16    0.000000E+00              9.00000E+100
150  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -6.440161E-16    0.000000E+00              9.00000E+100
151  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -2.664969E-15    0.000000E+00              9.00000E+100
152  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -6.765422E-16    0.000000E+00              9.00000E+100
153  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.992221E-15    0.000000E+00              9.00000E+100
154  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.998456E-15    0.000000E+00              9.00000E+100
155  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    6.666488E-16    0.000000E+00              9.00000E+100
156  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -6.657001E-16    0.000000E+00              9.00000E+100
157  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    6.407635E-16    0.000000E+00              9.00000E+100
158  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.084202E-17    0.000000E+00              9.00000E+100
159  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    1.332213E-15    0.000000E+00              9.00000E+100
160  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -6.483529E-16    0.000000E+00              9.00000E+100
161  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -2.001708E-15    0.000000E+00              9.00000E+100
162  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -1.999269E-15    0.000000E+00              9.00000E+100
163  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -1.934217E-15    0.000000E+00              9.00000E+100
164  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    7.372575E-16    0.000000E+00              9.00000E+100
165  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00   -6.657001E-16    0.000000E+00              9.00000E+100
166  traj.phases.phase0.continuity_comp.defect_control_rates:u_rate    e   0.000000E+00    6.537739E-16    0.000000E+00              9.00000E+100
167  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
168  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
169  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
170  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100
171  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
172  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
173  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
174  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
175  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100
176  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100
177  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
178  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
179  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100
180  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
181  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
182  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
183  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
184  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100
185  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
186  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    2.775558E-17    0.000000E+00              9.00000E+100
187  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
188  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
189  traj.phases.phase0.continuity_comp.defect_controls:u              e   0.000000E+00   -2.775558E-17    0.000000E+00              9.00000E+100

Exit Status
Inform  Description
0  Optimization terminated successfully.
--------------------------------------------------------------------------------

Simulating trajectory traj
Model viewer data has already been recorded for Driver.

Done simulating trajectory traj

False


## Plotting the solution#

The recommended practice is to obtain values from the recorded cases. While the problem object can also be queried for values, building plotting scripts that use the case recorder files as the data source means that the problem doesn’t need to be solved just to change a plot. Here we load values of various variables from the solution and simulation for use in the animation to follow.

sol = om.CaseReader('dymos_solution.db').get_case('final')

t = sol.get_val('traj.phase0.timeseries.time')
x = sol.get_val('traj.phase0.timeseries.x')
xL = sol.get_val('traj.phase0.timeseries.xL')
u = sol.get_val('traj.phase0.timeseries.u')

t_sim = sim.get_val('traj.phase0.timeseries.time')
x_sim = sim.get_val('traj.phase0.timeseries.x')
xL_sim = sim.get_val('traj.phase0.timeseries.xL')
u_sim = sim.get_val('traj.phase0.timeseries.u')

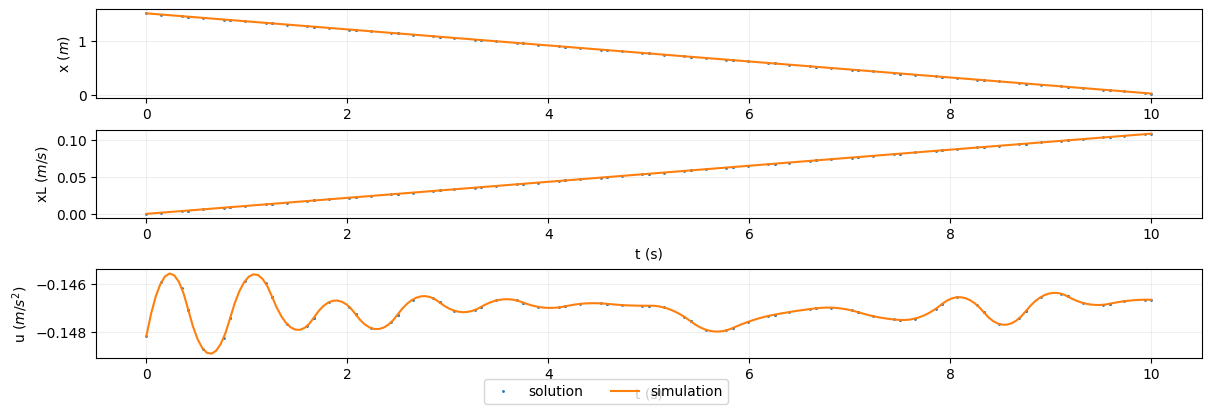

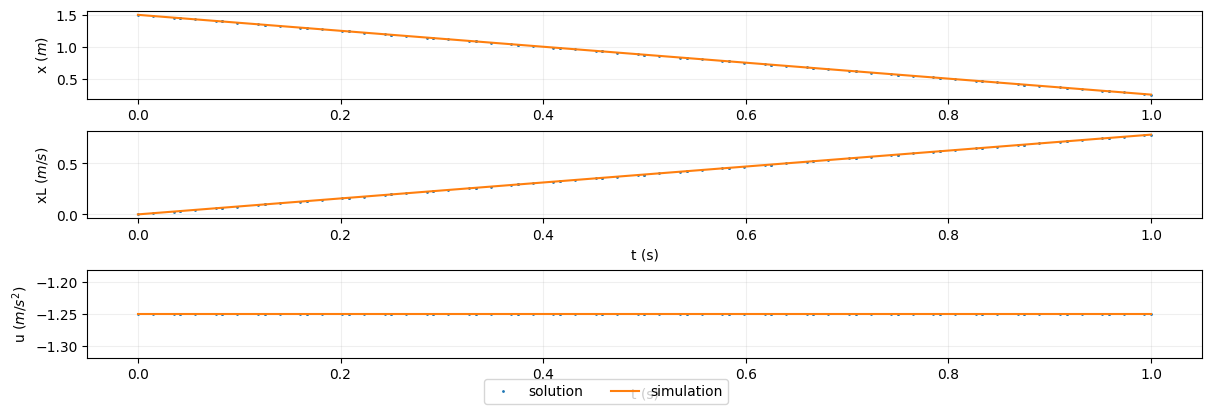

fig = plt.figure(constrained_layout=True, figsize=(12, 4))

x_ax.set_ylabel('x ($m$)')
xL_ax.set_ylabel('xL ($m/s$)')
u_ax.set_ylabel('u ($m/s^2$)')
xL_ax.set_xlabel('t (s)')
u_ax.set_xlabel('t (s)')

x_sol_handle, = x_ax.plot(t, x, 'o', ms=1)
xL_ax.plot(t, xL, 'o', ms=1)
u_ax.plot(t, u, 'o', ms=1)

x_sim_handle, = x_ax.plot(t_sim, x_sim, '-', ms=1)
xL_ax.plot(t_sim, xL_sim, '-', ms=1)
u_ax.plot(t_sim, u_sim, '-', ms=1)

for ax in [x_ax, xL_ax, u_ax]:
ax.grid(True, alpha=0.2)

plt.figlegend([x_sol_handle, x_sim_handle], ['solution', 'simulation'], ncol=2, loc='lower center');


## References#

[Hul03]

David G Hull. Optimal Control Theory for Applications. Springer, 2003.
