# Multi-Phase Cannonball#

Maximizing the range of a cannonball in a vacuum is a typical introductory problem for optimal control. In this example we are going to demonstrate a more multidisciplinary take on the problem. We will assume a density of the metal from which the cannonball is constructed, and a cannon that can fire any diameter cannonball but is limited to a maximum muzzle energy. If we make the cannonball large it will be heavy and the cannon will not be capable of propelling it very far. If we make the cannonball too small, it will have a low ballistic coefficient and not be able to sustain its momentum in the presence of atmospheric drag. Somewhere between these two extremes is the cannonball radius which allows for maximum range flight.

The presence of atmospheric drag also means that we typically want to launch the cannonball with more horizontal velocity, and thus use a launch angle less than 45 degrees.

The goal of our optimization is to find the optimal design for the cannonball (its radius) and the optimal flight profile (its launch angle) simultaneously.

## Using two phases to capture an intermediate boundary constraint#

This problem demonstrates the use of two phases to capture the state of the system at an event in the trajectory. Here, we have the first phase (ascent) terminate when the flight path angle reaches zero (apogee). The descent phase follows until the cannonball impacts the ground.

The dynamics are given by

(70)#\begin{align} \frac{dv}{dt} &= \frac{D}{m} - g \sin \gamma \\ \frac{d\gamma}{dt} &= - \frac{g \cos \gamma}{v} \\ \frac{dh}{dt} &= v \sin \gamma \\ \frac{dr}{dt} &= v \cos \gamma \\ \end{align}

The initial conditions are

(71)#\begin{align} r_0 &= 0 \rm{\,m} \\ h_0 &= 100 \rm{\,m} \\ v_0 &= \rm{free} \\ \gamma_0 &= \rm{free} \end{align}

and the final conditions are

(72)#\begin{align} h_f &= 0 \rm{\,m} \end{align}

## Designing a cannonball for maximum range#

This problem demonstrates a very simple vehicle design capability that is run before the trajectory.

We assume our cannon can shoot a cannonball with some fixed kinetic energy and that our cannonball is made of solid iron. The volume (and mass) of the cannonball is proportional to its radius cubed, while the cross-sectional area is proportional to its radius squared. If we increase the size of the cannonball, the ballistic coefficient

(73)#\begin{align} BC &= \frac{m}{C_D A} \end{align}

will increase, meaning the cannonball overcome air resistance more easily and thus carry more distance.

However, making the cannonball larger also increases its mass. Our cannon can impart the cannonball with, at most, 400 kJ of kinetic energy. So making the cannonball larger will decrease the initial velocity, and thus negatively impact its range.

We therefore have a design that affects the objective in competing ways. We cannot make the cannonball too large, as it will be too heavy to shoot. We also cannot make the cannonball too small, as it will be more susceptible to air resistance. Somewhere in between is the sweet spot that provides the maximum range cannonball.

## The cannonball sizing component#

This compoennt computes the area (needed to compute drag) and mass (needed to compute energy) of a cannonball of a given radius and density.

This component sits upstream of the trajectory model and feeds its outputs to the trajectory as parameters.

import numpy as np
from scipy.interpolate import interp1d
import matplotlib.pyplot as plt

import openmdao.api as om

import dymos as dm
from dymos.models.atmosphere.atmos_1976 import USatm1976Data

#############################################
# Component for the design part of the model
#############################################
class CannonballSizeComp(om.ExplicitComponent):
"""
Compute the area and mass of a cannonball with a given radius and density.

Notes
-----
This component is not vectorized with 'num_nodes' as is the usual way
with Dymos, but is instead intended to compute a scalar mass and reference
area from scalar radius and density inputs. This component does not reside
in the ODE but instead its outputs are connected to the trajectory via
input design parameters.
"""
def setup(self):

self.add_output(name='S', shape=(1,), desc='aerodynamic reference area', units='m**2')

self.declare_partials(of='mass', wrt='dens')

def compute(self, inputs, outputs):
dens = inputs['dens']

outputs['mass'] = (4/3.) * dens * np.pi * radius ** 3
outputs['S'] = np.pi * radius ** 2

def compute_partials(self, inputs, partials):
dens = inputs['dens']

partials['mass', 'dens'] = (4/3.) * np.pi * radius ** 3
partials['mass', 'radius'] = 4. * dens * np.pi * radius ** 2



## The cannonball ODE component#

This component computes the state rates and the kinetic energy of the cannonball. By calling the declare_coloring method wrt all inputs and using method 'cs', we’re telling OpenMDAO to automatically determine the sparsity pattern of the outputs with respect to the inputs, and to automatically compute those outputs using complex-step approximation.

class CannonballODE(om.ExplicitComponent):
"""
Cannonball ODE assuming flat earth and accounting for air resistance
"""

def initialize(self):
self.options.declare('num_nodes', types=int)

def setup(self):
nn = self.options['num_nodes']

# static parameters
# 0.5 good assumption for a sphere

# time varying inputs

# state rates

# Ask OpenMDAO to compute the partial derivatives using complex-step
# with a partial coloring algorithm for improved performance, and use
# a graph coloring algorithm to automatically detect the sparsity pattern.
self.declare_coloring(wrt='*', method='cs')

alt_data = USatm1976Data.alt * om.unit_conversion('ft', 'm')[0]
rho_data = USatm1976Data.rho * om.unit_conversion('slug/ft**3', 'kg/m**3')[0]
self.rho_interp = interp1d(np.array(alt_data, dtype=complex),
np.array(rho_data, dtype=complex),
kind='linear')

def compute(self, inputs, outputs):

gam = inputs['gam']
v = inputs['v']
h = inputs['h']
m = inputs['m']
S = inputs['S']
CD = inputs['CD']

GRAVITY = 9.80665  # m/s**2

# handle complex-step gracefully from the interpolant
if np.iscomplexobj(h):
rho = self.rho_interp(inputs['h'])
else:
rho = self.rho_interp(inputs['h']).real

q = 0.5*rho*inputs['v']**2
qS = q * S
D = qS * CD
cgam = np.cos(gam)
sgam = np.sin(gam)
outputs['v_dot'] = - D/m-GRAVITY*sgam
outputs['gam_dot'] = -(GRAVITY/v)*cgam
outputs['h_dot'] = v*sgam
outputs['r_dot'] = v*cgam
outputs['ke'] = 0.5*m*v**2


## Building and running the problem#

The following code defines the components for the physical cannonball calculations and ODE problem, sets up trajectory using two phases, and links them accordingly. The initial flight path angle is free, since 45 degrees is not necessarily optimal once air resistance is taken into account.

p = om.Problem(model=om.Group())

p.driver = om.pyOptSparseDriver()
p.driver.options['optimizer'] = 'SLSQP'
p.driver.declare_coloring()

p.model.set_input_defaults('dens', val=7.87, units='g/cm**3')
ref0=0.01, ref=0.10, units='m')

ascent = dm.Phase(ode_class=CannonballODE, transcription=transcription)

# All initial states except flight path angle are fixed
# Final flight path angle is fixed (we will set it to zero
# so that the phase ends at apogee).
# The output of the ODE which provides the rate source for each state
# is obtained from the tags used on those outputs in the ODE.
# The units of the states are automatically inferred by multiplying the units
# of those rates by the time units.
ascent.set_time_options(fix_initial=True, duration_bounds=(1, 100),
duration_ref=100, units='s')
ascent.set_state_options('r', fix_initial=True, fix_final=False)
ascent.set_state_options('h', fix_initial=True, fix_final=False)
ascent.set_state_options('gam', fix_initial=False, fix_final=True)
ascent.set_state_options('v', fix_initial=False, fix_final=False)

# Limit the muzzle energy
upper=400000, lower=0, ref=100000)

# Second Phase (descent)
transcription = dm.GaussLobatto(num_segments=5, order=3, compressed=True)
descent = dm.Phase(ode_class=CannonballODE, transcription=transcription)

# All initial states and time are free, since
#    they will be linked to the final states of ascent.
# Final altitude is fixed, because we will set
#    it to zero so that the phase ends at ground impact)
descent.set_time_options(initial_bounds=(.5, 100), duration_bounds=(.5, 100),
duration_ref=100, units='s')

# Add internally-managed design parameters to the trajectory.
targets={'ascent': ['CD'], 'descent': ['CD']},
val=0.5, units=None, opt=False, static_target=True)

# Add externally-provided design parameters to the trajectory.
# In this case, we connect 'm' to pre-existing input parameters
# named 'mass' in each phase.
targets={'ascent': 'm', 'descent': 'm'},
static_target=True)

# In this case, by omitting targets, we're connecting these
# parameters to parameters with the same name in each phase.

# Issue Connections
p.model.connect('size_comp.mass', 'traj.parameters:m')
p.model.connect('size_comp.S', 'traj.parameters:S')

# A linear solver at the top level can improve performance.
p.model.linear_solver = om.DirectSolver()

# Finish Problem Setup
p.setup()

#############################################
# Set constants and initial guesses
#############################################
p.set_val('dens', 7.87, units='g/cm**3')

p.set_val('traj.parameters:CD', 0.5)

p.set_val('traj.ascent.t_initial', 0.0)
p.set_val('traj.ascent.t_duration', 10.0)

p.set_val('traj.ascent.states:r', ascent.interp('r', [0, 100]))
p.set_val('traj.ascent.states:h', ascent.interp('h', [0, 100]))
p.set_val('traj.ascent.states:v', ascent.interp('v', [200, 150]))
p.set_val('traj.ascent.states:gam', ascent.interp('gam', [25, 0]), units='deg')

p.set_val('traj.descent.t_initial', 10.0)
p.set_val('traj.descent.t_duration', 10.0)

p.set_val('traj.descent.states:r', descent.interp('r', [100, 200]))
p.set_val('traj.descent.states:h', descent.interp('h', [100, 0]))
p.set_val('traj.descent.states:v', descent.interp('v', [150, 200]))
p.set_val('traj.descent.states:gam', descent.interp('gam', [0, -45]), units='deg')

#####################################################

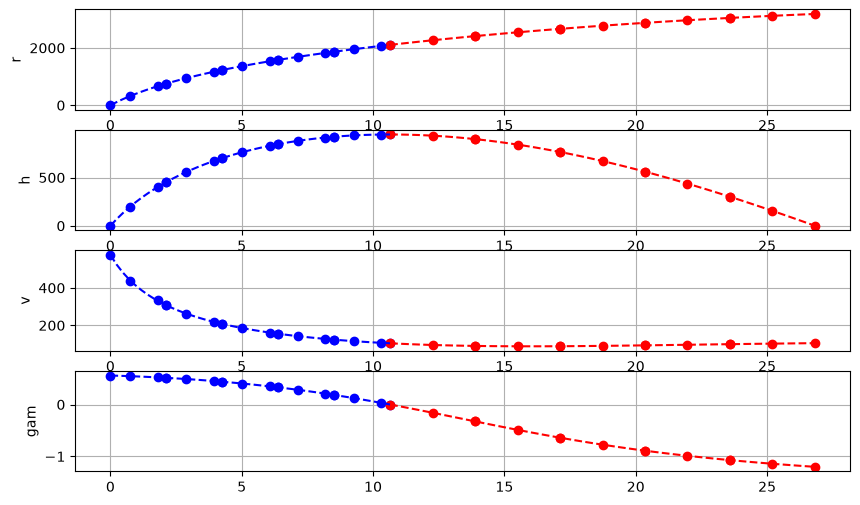

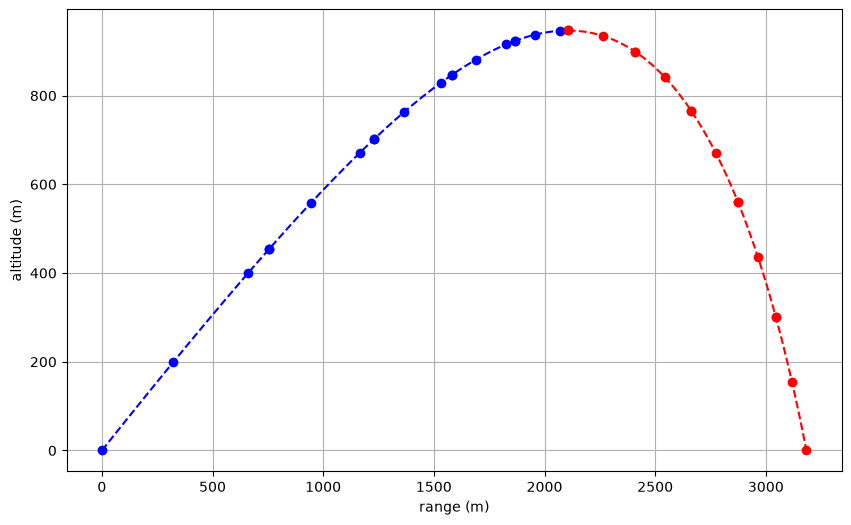

# Run the optimization and final explicit simulation
#####################################################
dm.run_problem(p, simulate=True)

--- Constraint Report [traj] ---
--- ascent ---
[initial] 0.0000e+00 <= ke <= 4.0000e+05  [J]
--- descent ---
None

Model viewer data has already been recorded for Driver.
Model viewer data has already been recorded for Driver.

Coloring for 'traj.phases.ascent.rhs_all' (class CannonballODE)

Jacobian shape: (100, 63)  ( 4.44% nonzero)
FWD solves: 6   REV solves: 0
Total colors vs. total size: 6 vs 63  (90.5% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.024380 sec.
Time to compute coloring: 0.010724 sec.
Memory to compute coloring: 0.250000 MB.

Coloring for 'traj.phases.descent.rhs_disc' (class CannonballODE)

Jacobian shape: (50, 33)  ( 8.48% nonzero)
FWD solves: 6   REV solves: 0
Total colors vs. total size: 6 vs 33  (81.8% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.012840 sec.
Time to compute coloring: 0.005788 sec.
Memory to compute coloring: 0.000000 MB.

Coloring for 'traj.phases.descent.rhs_col' (class CannonballODE)

Jacobian shape: (25, 18)  (15.56% nonzero)
FWD solves: 6   REV solves: 0
Total colors vs. total size: 6 vs 18  (66.7% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.007310 sec.
Time to compute coloring: 0.003243 sec.
Memory to compute coloring: 0.000000 MB.

Full total jacobian was computed 3 times, taking 0.144098 seconds.
Total jacobian shape: (87, 88)

Jacobian shape: (87, 88)  (13.27% nonzero)
FWD solves: 27   REV solves: 0
Total colors vs. total size: 27 vs 88  (69.3% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.144098 sec.
Time to compute coloring: 0.074008 sec.
Memory to compute coloring: 0.375000 MB.

Optimization Problem -- Optimization using pyOpt_sparse
================================================================================
Objective Function: _objfunc

Solution:
--------------------------------------------------------------------------------
Total Time:                    2.0383
User Objective Time :       0.2960
User Sensitivity Time :     1.2166
Interface Time :            0.2925
Opt Solver Time:            0.2332
Calls to Objective Function :     118
Calls to Sens Function :           89

Objectives
Index  Name                                                 Value
0  traj.phases.descent.indep_states.states:r    -3.183118E+03

Variables (c - continuous, i - integer, d - discrete)
Index  Name                                            Type      Lower Bound            Value      Upper Bound     Status
0  radius_0                                           c     0.000000E+00     3.539225E-01     1.000000E+00
1  traj.ascent.t_duration_0                           c     1.000000E-02     1.064895E-01     1.000000E+00
2  traj.phases.ascent.indep_states.states:r_0         c    -1.000000E+21     3.231043E+02     1.000000E+21
3  traj.phases.ascent.indep_states.states:r_1         c    -1.000000E+21     6.616876E+02     1.000000E+21
4  traj.phases.ascent.indep_states.states:r_2         c    -1.000000E+21     7.552526E+02     1.000000E+21
5  traj.phases.ascent.indep_states.states:r_3         c    -1.000000E+21     9.434454E+02     1.000000E+21
6  traj.phases.ascent.indep_states.states:r_4         c    -1.000000E+21     1.165633E+03     1.000000E+21
7  traj.phases.ascent.indep_states.states:r_5         c    -1.000000E+21     1.229354E+03     1.000000E+21
8  traj.phases.ascent.indep_states.states:r_6         c    -1.000000E+21     1.364715E+03     1.000000E+21
9  traj.phases.ascent.indep_states.states:r_7         c    -1.000000E+21     1.532445E+03     1.000000E+21
10  traj.phases.ascent.indep_states.states:r_8         c    -1.000000E+21     1.581810E+03     1.000000E+21
11  traj.phases.ascent.indep_states.states:r_9         c    -1.000000E+21     1.688890E+03     1.000000E+21
12  traj.phases.ascent.indep_states.states:r_10        c    -1.000000E+21     1.825079E+03     1.000000E+21
13  traj.phases.ascent.indep_states.states:r_11        c    -1.000000E+21     1.865797E+03     1.000000E+21
14  traj.phases.ascent.indep_states.states:r_12        c    -1.000000E+21     1.955144E+03     1.000000E+21
15  traj.phases.ascent.indep_states.states:r_13        c    -1.000000E+21     2.070557E+03     1.000000E+21
16  traj.phases.ascent.indep_states.states:r_14        c    -1.000000E+21     2.105398E+03     1.000000E+21
17  traj.phases.ascent.indep_states.states:h_0         c    -1.000000E+21     1.995146E+02     1.000000E+21
18  traj.phases.ascent.indep_states.states:h_1         c    -1.000000E+21     4.002917E+02     1.000000E+21
19  traj.phases.ascent.indep_states.states:h_2         c    -1.000000E+21     4.537845E+02     1.000000E+21
20  traj.phases.ascent.indep_states.states:h_3         c    -1.000000E+21     5.574056E+02     1.000000E+21
21  traj.phases.ascent.indep_states.states:h_4         c    -1.000000E+21     6.711526E+02     1.000000E+21
22  traj.phases.ascent.indep_states.states:h_5         c    -1.000000E+21     7.016712E+02     1.000000E+21
23  traj.phases.ascent.indep_states.states:h_6         c    -1.000000E+21     7.625774E+02     1.000000E+21
24  traj.phases.ascent.indep_states.states:h_7         c    -1.000000E+21     8.292929E+02     1.000000E+21
25  traj.phases.ascent.indep_states.states:h_8         c    -1.000000E+21     8.467852E+02     1.000000E+21
26  traj.phases.ascent.indep_states.states:h_9         c    -1.000000E+21     8.807923E+02     1.000000E+21
27  traj.phases.ascent.indep_states.states:h_10        c    -1.000000E+21     9.151926E+02     1.000000E+21
28  traj.phases.ascent.indep_states.states:h_11        c    -1.000000E+21     9.233143E+02     1.000000E+21
29  traj.phases.ascent.indep_states.states:h_12        c    -1.000000E+21     9.371859E+02     1.000000E+21
30  traj.phases.ascent.indep_states.states:h_13        c    -1.000000E+21     9.461925E+02     1.000000E+21
31  traj.phases.ascent.indep_states.states:h_14        c    -1.000000E+21     9.467365E+02     1.000000E+21
32  traj.phases.ascent.indep_states.states:gam_0       c    -1.000000E+21     5.588459E-01     1.000000E+21
33  traj.phases.ascent.indep_states.states:gam_1       c    -1.000000E+21     5.461378E-01     1.000000E+21
34  traj.phases.ascent.indep_states.states:gam_2       c    -1.000000E+21     5.228406E-01     1.000000E+21
35  traj.phases.ascent.indep_states.states:gam_3       c    -1.000000E+21     5.140981E-01     1.000000E+21
36  traj.phases.ascent.indep_states.states:gam_4       c    -1.000000E+21     4.911599E-01     1.000000E+21
37  traj.phases.ascent.indep_states.states:gam_5       c    -1.000000E+21     4.530243E-01     1.000000E+21
38  traj.phases.ascent.indep_states.states:gam_6       c    -1.000000E+21     4.393302E-01     1.000000E+21
39  traj.phases.ascent.indep_states.states:gam_7       c    -1.000000E+21     4.048232E-01     1.000000E+21
40  traj.phases.ascent.indep_states.states:gam_8       c    -1.000000E+21     3.498022E-01     1.000000E+21
41  traj.phases.ascent.indep_states.states:gam_9       c    -1.000000E+21     3.305300E-01     1.000000E+21
42  traj.phases.ascent.indep_states.states:gam_10      c    -1.000000E+21     2.829154E-01     1.000000E+21
43  traj.phases.ascent.indep_states.states:gam_11      c    -1.000000E+21     2.091969E-01     1.000000E+21
44  traj.phases.ascent.indep_states.states:gam_12      c    -1.000000E+21     1.839162E-01     1.000000E+21
45  traj.phases.ascent.indep_states.states:gam_13      c    -1.000000E+21     1.226062E-01     1.000000E+21
46  traj.phases.ascent.indep_states.states:gam_14      c    -1.000000E+21     3.070674E-02     1.000000E+21
47  traj.phases.ascent.indep_states.states:v_0         c    -1.000000E+21     5.753380E+02     1.000000E+21
48  traj.phases.ascent.indep_states.states:v_1         c    -1.000000E+21     4.377128E+02     1.000000E+21
49  traj.phases.ascent.indep_states.states:v_2         c    -1.000000E+21     3.333818E+02     1.000000E+21
50  traj.phases.ascent.indep_states.states:v_3         c    -1.000000E+21     3.071231E+02     1.000000E+21
51  traj.phases.ascent.indep_states.states:v_4         c    -1.000000E+21     2.628446E+02     1.000000E+21
52  traj.phases.ascent.indep_states.states:v_5         c    -1.000000E+21     2.189809E+02     1.000000E+21
53  traj.phases.ascent.indep_states.states:v_6         c    -1.000000E+21     2.076302E+02     1.000000E+21
54  traj.phases.ascent.indep_states.states:v_7         c    -1.000000E+21     1.856231E+02     1.000000E+21
55  traj.phases.ascent.indep_states.states:v_8         c    -1.000000E+21     1.616748E+02     1.000000E+21
56  traj.phases.ascent.indep_states.states:v_9         c    -1.000000E+21     1.552355E+02     1.000000E+21
57  traj.phases.ascent.indep_states.states:v_10        c    -1.000000E+21     1.422744E+02     1.000000E+21
58  traj.phases.ascent.indep_states.states:v_11        c    -1.000000E+21     1.276786E+02     1.000000E+21
59  traj.phases.ascent.indep_states.states:v_12        c    -1.000000E+21     1.237104E+02     1.000000E+21
60  traj.phases.ascent.indep_states.states:v_13        c    -1.000000E+21     1.156806E+02     1.000000E+21
61  traj.phases.ascent.indep_states.states:v_14        c    -1.000000E+21     1.067082E+02     1.000000E+21
62  traj.phases.ascent.indep_states.states:v_15        c    -1.000000E+21     1.043171E+02     1.000000E+21
63  traj.descent.t_initial_0                           c     5.000000E-01     1.064895E+01     1.000000E+02
64  traj.descent.t_duration_0                          c     5.000000E-03     1.617267E-01     1.000000E+00
65  traj.phases.descent.indep_states.states:r_0        c    -1.000000E+21     2.105398E+03     1.000000E+21
66  traj.phases.descent.indep_states.states:r_1        c    -1.000000E+21     2.410813E+03     1.000000E+21
67  traj.phases.descent.indep_states.states:r_2        c    -1.000000E+21     2.663597E+03     1.000000E+21
68  traj.phases.descent.indep_states.states:r_3        c    -1.000000E+21     2.873278E+03     1.000000E+21
69  traj.phases.descent.indep_states.states:r_4        c    -1.000000E+21     3.045011E+03     1.000000E+21
70  traj.phases.descent.indep_states.states:r_5        c    -1.000000E+21     3.183118E+03     1.000000E+21
71  traj.phases.descent.indep_states.states:h_0        c    -1.000000E+21     9.467365E+02     1.000000E+21
72  traj.phases.descent.indep_states.states:h_1        c    -1.000000E+21     8.986347E+02     1.000000E+21
73  traj.phases.descent.indep_states.states:h_2        c    -1.000000E+21     7.651714E+02     1.000000E+21
74  traj.phases.descent.indep_states.states:h_3        c    -1.000000E+21     5.609894E+02     1.000000E+21
75  traj.phases.descent.indep_states.states:h_4        c    -1.000000E+21     3.009916E+02     1.000000E+21
76  traj.phases.descent.indep_states.states:gam_0      c    -1.000000E+21     2.068352E-20     1.000000E+21
77  traj.phases.descent.indep_states.states:gam_1      c    -1.000000E+21    -3.251038E-01     1.000000E+21
78  traj.phases.descent.indep_states.states:gam_2      c    -1.000000E+21    -6.397506E-01     1.000000E+21
79  traj.phases.descent.indep_states.states:gam_3      c    -1.000000E+21    -8.901606E-01     1.000000E+21
80  traj.phases.descent.indep_states.states:gam_4      c    -1.000000E+21    -1.071739E+00     1.000000E+21
81  traj.phases.descent.indep_states.states:gam_5      c    -1.000000E+21    -1.201117E+00     1.000000E+21
82  traj.phases.descent.indep_states.states:v_0        c    -1.000000E+21     1.043171E+02     1.000000E+21
83  traj.phases.descent.indep_states.states:v_1        c    -1.000000E+21     9.031921E+01     1.000000E+21
84  traj.phases.descent.indep_states.states:v_2        c    -1.000000E+21     8.870119E+01     1.000000E+21
85  traj.phases.descent.indep_states.states:v_3        c    -1.000000E+21     9.333723E+01     1.000000E+21
86  traj.phases.descent.indep_states.states:v_4        c    -1.000000E+21     9.960765E+01     1.000000E+21
87  traj.phases.descent.indep_states.states:v_5        c    -1.000000E+21     1.050638E+02     1.000000E+21

Constraints (i - inequality, e - equality)
Index  Name                                                   Type          Lower           Value           Upper    Status  Lagrange Multiplier (N/A)
0  traj.linkages.ascent:time_final|descent:time_initial      e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
1  traj.linkages.ascent:r_final|descent:r_initial            e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
2  traj.linkages.ascent:h_final|descent:h_initial            e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
3  traj.linkages.ascent:gam_final|descent:gam_initial        e   0.000000E+00   -2.068352E-20    0.000000E+00              9.00000E+100
4  traj.linkages.ascent:v_final|descent:v_initial            e   0.000000E+00    0.000000E+00    0.000000E+00              9.00000E+100
5  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    1.374082E-11    0.000000E+00              9.00000E+100
6  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    6.900677E-12    0.000000E+00              9.00000E+100
7  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    3.753000E-12    0.000000E+00              9.00000E+100
8  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    2.905548E-12    0.000000E+00              9.00000E+100
9  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    1.876500E-12    0.000000E+00              9.00000E+100
10  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    3.631935E-13    0.000000E+00              9.00000E+100
11  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00    7.869193E-13    0.000000E+00              9.00000E+100
12  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -2.421290E-13    0.000000E+00              9.00000E+100
13  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -3.026613E-14    0.000000E+00              9.00000E+100
14  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -5.145241E-13    0.000000E+00              9.00000E+100
15  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -5.447903E-13    0.000000E+00              9.00000E+100
16  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -9.231168E-13    0.000000E+00              9.00000E+100
17  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -1.195512E-12    0.000000E+00              9.00000E+100
18  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -5.599233E-13    0.000000E+00              9.00000E+100
19  traj.phases.ascent.collocation_constraint.defects:r       e   0.000000E+00   -3.783266E-13    0.000000E+00              9.00000E+100
20  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    1.065368E-11    0.000000E+00              9.00000E+100
21  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.874064E-12    0.000000E+00              9.00000E+100
22  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    1.119847E-12    0.000000E+00              9.00000E+100
23  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    4.237258E-13    0.000000E+00              9.00000E+100
24  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.934596E-13    0.000000E+00              9.00000E+100
25  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.934596E-13    0.000000E+00              9.00000E+100
26  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    1.361976E-13    0.000000E+00              9.00000E+100
27  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    9.079838E-14    0.000000E+00              9.00000E+100
28  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.026613E-13    0.000000E+00              9.00000E+100
29  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    1.513306E-14    0.000000E+00              9.00000E+100
30  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.253608E-13    0.000000E+00              9.00000E+100
31  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    1.702470E-13    0.000000E+00              9.00000E+100
32  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    3.594102E-13    0.000000E+00              9.00000E+100
33  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00    2.383457E-13    0.000000E+00              9.00000E+100
34  traj.phases.ascent.collocation_constraint.defects:h       e   0.000000E+00   -1.054585E-13    0.000000E+00              9.00000E+100
35  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    7.232170E-15    0.000000E+00              9.00000E+100
36  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    3.786960E-15    0.000000E+00              9.00000E+100
37  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    2.405182E-15    0.000000E+00              9.00000E+100
38  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    1.762322E-15    0.000000E+00              9.00000E+100
39  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    7.019731E-16    0.000000E+00              9.00000E+100
40  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    2.068973E-16    0.000000E+00              9.00000E+100
41  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    1.403946E-16    0.000000E+00              9.00000E+100
42  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00   -7.389191E-18    0.000000E+00              9.00000E+100
43  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    1.477838E-17    0.000000E+00              9.00000E+100
44  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00   -2.216757E-17    0.000000E+00              9.00000E+100
45  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    2.364541E-16    0.000000E+00              9.00000E+100
46  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    7.093623E-16    0.000000E+00              9.00000E+100
47  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    8.719245E-16    0.000000E+00              9.00000E+100
48  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    1.226606E-15    0.000000E+00              9.00000E+100
49  traj.phases.ascent.collocation_constraint.defects:gam     e   0.000000E+00    1.891633E-15    0.000000E+00              9.00000E+100
50  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    2.910693E-10    0.000000E+00              9.00000E+100
51  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    9.548963E-11    0.000000E+00              9.00000E+100
52  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    3.559296E-11    0.000000E+00              9.00000E+100
53  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    2.468203E-11    0.000000E+00              9.00000E+100
54  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    1.376352E-11    0.000000E+00              9.00000E+100
55  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    7.188205E-12    0.000000E+00              9.00000E+100
56  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    5.833796E-12    0.000000E+00              9.00000E+100
57  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    3.991345E-12    0.000000E+00              9.00000E+100
58  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    2.349408E-12    0.000000E+00              9.00000E+100
59  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    1.955948E-12    0.000000E+00              9.00000E+100
60  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    1.587080E-12    0.000000E+00              9.00000E+100
61  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    1.034723E-12    0.000000E+00              9.00000E+100
62  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    9.193336E-13    0.000000E+00              9.00000E+100
63  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    7.150372E-13    0.000000E+00              9.00000E+100
64  traj.phases.ascent.collocation_constraint.defects:v       e   0.000000E+00    6.261305E-13    0.000000E+00              9.00000E+100
65  traj.phases.descent.collocation_constraint.defects:r      e   0.000000E+00    7.975015E-12    0.000000E+00              9.00000E+100
66  traj.phases.descent.collocation_constraint.defects:r      e   0.000000E+00    7.952032E-12    0.000000E+00              9.00000E+100
67  traj.phases.descent.collocation_constraint.defects:r      e   0.000000E+00    7.952032E-12    0.000000E+00              9.00000E+100
68  traj.phases.descent.collocation_constraint.defects:r      e   0.000000E+00    7.572817E-12    0.000000E+00              9.00000E+100
69  traj.phases.descent.collocation_constraint.defects:r      e   0.000000E+00    6.377714E-12    0.000000E+00              9.00000E+100
70  traj.phases.descent.collocation_constraint.defects:h      e   0.000000E+00   -1.904696E-12    0.000000E+00              9.00000E+100
71  traj.phases.descent.collocation_constraint.defects:h      e   0.000000E+00   -4.952783E-12    0.000000E+00              9.00000E+100
72  traj.phases.descent.collocation_constraint.defects:h      e   0.000000E+00   -6.446662E-12    0.000000E+00              9.00000E+100
73  traj.phases.descent.collocation_constraint.defects:h      e   0.000000E+00   -7.124653E-12    0.000000E+00              9.00000E+100
74  traj.phases.descent.collocation_constraint.defects:h      e   0.000000E+00   -7.975015E-12    0.000000E+00              9.00000E+100
75  traj.phases.descent.collocation_constraint.defects:gam    e   0.000000E+00    1.598019E-14    0.000000E+00              9.00000E+100
76  traj.phases.descent.collocation_constraint.defects:gam    e   0.000000E+00    5.678356E-15    0.000000E+00              9.00000E+100
77  traj.phases.descent.collocation_constraint.defects:gam    e   0.000000E+00   -8.057430E-15    0.000000E+00              9.00000E+100
78  traj.phases.descent.collocation_constraint.defects:gam    e   0.000000E+00   -1.173826E-14    0.000000E+00              9.00000E+100
79  traj.phases.descent.collocation_constraint.defects:gam    e   0.000000E+00   -1.099761E-14    0.000000E+00              9.00000E+100
80  traj.phases.descent.collocation_constraint.defects:v      e   0.000000E+00    7.799771E-13    0.000000E+00              9.00000E+100
81  traj.phases.descent.collocation_constraint.defects:v      e   0.000000E+00    4.679145E-13    0.000000E+00              9.00000E+100
82  traj.phases.descent.collocation_constraint.defects:v      e   0.000000E+00    1.251483E-12    0.000000E+00              9.00000E+100
83  traj.phases.descent.collocation_constraint.defects:v      e   0.000000E+00    2.170793E-12    0.000000E+00              9.00000E+100
84  traj.phases.descent.collocation_constraint.defects:v      e   0.000000E+00    2.683595E-12    0.000000E+00              9.00000E+100
85  traj.phases.ascent->initial_boundary_constraint->ke       i   0.000000E+00    4.000000E+00    4.000000E+00         u    9.00000E+100

Exit Status
Inform  Description
0  Optimization terminated successfully.
--------------------------------------------------------------------------------

Simulating trajectory traj
Model viewer data has already been recorded for Driver.

Done simulating trajectory traj

False


## Plotting the results#

sol = om.CaseReader('dymos_solution.db').get_case('final')

#############################################
# Plot the results
#############################################
mass = p.get_val('size_comp.mass', units='kg')[0]
print(f'cannonball mass: {mass} kg ')
area = p.get_val('size_comp.S', units='cm**2')[0]
print(f'cannonball aerodynamic reference area: {area} cm**2 ')
angle = p.get_val('traj.ascent.timeseries.gam', units='deg')[0, 0]
print(f'launch angle: {angle} deg')
max_range = p.get_val('traj.descent.timeseries.r')[-1, 0]
print(f'maximum range: {max_range} m')

fig, axes = plt.subplots(nrows=1, ncols=1, figsize=(10, 6))

time_imp = {'ascent': p.get_val('traj.ascent.timeseries.time'),
'descent': p.get_val('traj.descent.timeseries.time')}

time_exp = {'ascent': sim.get_val('traj.ascent.timeseries.time'),
'descent': sim.get_val('traj.descent.timeseries.time')}

r_imp = {'ascent': p.get_val('traj.ascent.timeseries.r'),
'descent': p.get_val('traj.descent.timeseries.r')}

r_exp = {'ascent': sim.get_val('traj.ascent.timeseries.r'),
'descent': sim.get_val('traj.descent.timeseries.r')}

h_imp = {'ascent': p.get_val('traj.ascent.timeseries.h'),
'descent': p.get_val('traj.descent.timeseries.h')}

h_exp = {'ascent': sim.get_val('traj.ascent.timeseries.h'),
'descent': sim.get_val('traj.descent.timeseries.h')}

axes.plot(r_imp['ascent'], h_imp['ascent'], 'bo')

axes.plot(r_imp['descent'], h_imp['descent'], 'ro')

axes.plot(r_exp['ascent'], h_exp['ascent'], 'b--')

axes.plot(r_exp['descent'], h_exp['descent'], 'r--')

axes.set_xlabel('range (m)')
axes.set_ylabel('altitude (m)')
axes.grid(True)

fig, axes = plt.subplots(nrows=4, ncols=1, figsize=(10, 6))
states = ['r', 'h', 'v', 'gam']
for i, state in enumerate(states):
x_imp = {'ascent': sol.get_val(f'traj.ascent.timeseries.{state}'),
'descent': sol.get_val(f'traj.descent.timeseries.{state}')}

x_exp = {'ascent': sim.get_val(f'traj.ascent.timeseries.{state}'),
'descent': sim.get_val(f'traj.descent.timeseries.{state}')}

axes[i].set_ylabel(state)
axes[i].grid(True)

axes[i].plot(time_imp['ascent'], x_imp['ascent'], 'bo')
axes[i].plot(time_imp['descent'], x_imp['descent'], 'ro')
axes[i].plot(time_exp['ascent'], x_exp['ascent'], 'b--')
axes[i].plot(time_exp['descent'], x_exp['descent'], 'r--')

plt.show()

optimal radius: 0.041853025522226056 m
cannonball mass: 2.4168178311115107 kg
cannonball aerodynamic reference area: 55.03051653107299 cm**2
launch angle: 32.01951038312746 deg
maximum range: 3183.117726801712 m
