# Multibranch Trajectory#

This example demonstrates the use of a Trajectory to encapsulate a series of branching phases.

## Overview#

For this example, we build a system that contains two components: the first component represents a battery pack that contains multiple cells in parallel, and the second component represents a bank of DC electric motors (also in parallel) driving a gearbox to achieve a desired power output. The battery cells have a state of charge that decays as current is drawn from the battery. The open circuit voltage of the battery is a function of the state of charge. At any point in time, the coupling between the battery and the motor component is solved with a Newton solver in the containing group for a line current that satisfies the equations.

Both the battery and the motor models allow the number of cells and the number of motors to be modified by setting the n_parallel option in their respective options dictionaries. For this model, we start with 3 cells and 3 motors. We will simulate failure of a cell or battery by setting n_parallel to 2.

Branching phases are a set of linked phases in a trajectory where the input ends of multiple phases are connected to the output of a single phase. This way you can simulate alternative trajectory paths in the same model. For this example, we will start with a single phase (phase0) that simulates the model for one hour. Three follow-on phases will be linked to the output of the first phase: phase1 will run as normal, phase1_bfail will fail one of the battery cells, and phase1_mfail will fail a motor. All three of these phases start where phase0 leaves off, so they share the same initial time and state of charge.

## Battery and Motor models#

The models are loosely based on the work done in Chin [CSM+19].

"""
Simple dynamic model of a LI battery.
"""
import numpy as np
from scipy.interpolate import Akima1DInterpolator

import openmdao.api as om
# Data for open circuit voltage model.
train_SOC = np.array([0., 0.1, 0.25, 0.5, 0.75, 0.9, 1.0])
train_V_oc = np.array([3.5, 3.55, 3.65, 3.75, 3.9, 4.1, 4.2])

class Battery(om.ExplicitComponent):
"""
Model of a Lithium Ion battery.
"""

def initialize(self):
self.options.declare('num_nodes', default=1)
self.options.declare('n_series', default=1, desc='number of cells in series')
self.options.declare('n_parallel', default=3, desc='number of cells in parallel')
self.options.declare('Q_max', default=1.05,
desc='Max Energy Capacity of a battery cell in A*h')
self.options.declare('R_0', default=.025,
desc='Internal resistance of the battery (ohms)')

def setup(self):
num_nodes = self.options['num_nodes']

# Inputs
desc='Current demanded per cell')

# State Variables
self.add_input('SOC', val=np.ones(num_nodes), units=None, desc='State of charge')

# Outputs
val=np.ones(num_nodes),
units='V',
desc='Terminal voltage of the battery')

val=np.ones(num_nodes),
units='1/s',
desc='Time derivative of state of charge')

desc='Open Circuit Voltage')
desc='Total Pack Current')
desc='Total Pack Voltage')
desc='Total Pack Power')

# Derivatives
row_col = np.arange(num_nodes)

self.declare_partials(of='V_oc', wrt=['SOC'], rows=row_col, cols=row_col)
self.declare_partials(of='V_L', wrt=['SOC'], rows=row_col, cols=row_col)
self.declare_partials(of='V_L', wrt=['I_Li'], rows=row_col, cols=row_col)
self.declare_partials(of='dXdt:SOC', wrt=['I_Li'], rows=row_col, cols=row_col)
self.declare_partials(of='I_pack', wrt=['I_Li'], rows=row_col, cols=row_col)
self.declare_partials(of='V_pack', wrt=['SOC', 'I_Li'], rows=row_col, cols=row_col)
self.declare_partials(of='P_pack', wrt=['SOC', 'I_Li'], rows=row_col, cols=row_col)

self.voltage_model = Akima1DInterpolator(train_SOC, train_V_oc)
self.voltage_model_derivative = self.voltage_model.derivative()

def compute(self, inputs, outputs):
opt = self.options
I_Li = inputs['I_Li']
SOC = inputs['SOC']

V_oc = self.voltage_model(SOC, extrapolate=True)

outputs['V_oc'] = V_oc
outputs['V_L'] = V_oc - (I_Li * opt['R_0'])
outputs['dXdt:SOC'] = -I_Li / (3600.0 * opt['Q_max'])

outputs['I_pack'] = I_Li * opt['n_parallel']
outputs['V_pack'] = outputs['V_L'] * opt['n_series']
outputs['P_pack'] = outputs['I_pack'] * outputs['V_pack']

def compute_partials(self, inputs, partials):
opt = self.options
I_Li = inputs['I_Li']
SOC = inputs['SOC']

dV_dSOC = self.voltage_model_derivative(SOC, extrapolate=True)
partials['V_oc', 'SOC'] = dV_dSOC
partials['V_L', 'SOC'] = dV_dSOC

partials['V_L', 'I_Li'] = -opt['R_0']

partials['dXdt:SOC', 'I_Li'] = -1./(3600.0*opt['Q_max'])

n_parallel = opt['n_parallel']
n_series = opt['n_series']
V_oc = self.voltage_model(SOC, extrapolate=True)
V_L = V_oc - (I_Li * opt['R_0'])

partials['I_pack', 'I_Li'] = n_parallel
partials['V_pack', 'I_Li'] = -opt['R_0']
partials['V_pack', 'SOC'] = n_series * dV_dSOC
partials['P_pack', 'I_Li'] = n_parallel * n_series * (V_L - I_Li * opt['R_0'])
partials['P_pack', 'SOC'] = n_parallel * I_Li * n_series * dV_dSOC

# num_nodes = 1

# prob = om.Problem(model=Battery(num_nodes=num_nodes))
# model = prob.model

# prob.setup()
# prob.set_solver_print(level=2)

# prob.run_model()

# derivs = prob.check_partials(compact_print=True)

"""
Simple model for a set of motors in parallel where efficiency is a function of current.
"""
import numpy as np

import openmdao.api as om

class Motors(om.ExplicitComponent):
"""
Model for motors in parallel.
"""

def initialize(self):
self.options.declare('num_nodes', default=1)
self.options.declare('n_parallel', default=3, desc='number of motors in parallel')

def setup(self):
num_nodes = self.options['num_nodes']

# Inputs
desc='Power at gearbox output')
desc='Total current demanded')

# Outputs
desc='Power required at motor input')

# Derivatives
row_col = np.arange(num_nodes)

self.declare_partials(of='power_in_motor', wrt=['*'], rows=row_col, cols=row_col)

def compute(self, inputs, outputs):
current = inputs['current_in_motor']
power_out = inputs['power_out_gearbox']
n_parallel = self.options['n_parallel']

# Simple linear curve fit for efficiency.
eff = 0.9 - 0.3 * current / n_parallel

outputs['power_in_motor'] = power_out / eff

def compute_partials(self, inputs, partials):
current = inputs['current_in_motor']
power_out = inputs['power_out_gearbox']
n_parallel = self.options['n_parallel']

eff = 0.9 - 0.3 * current / n_parallel

partials['power_in_motor', 'power_out_gearbox'] = 1.0 / eff
partials['power_in_motor', 'current_in_motor'] = 0.3 * power_out / (n_parallel * eff**2)

# num_nodes = 1

# prob = om.Problem(model=Motors(num_nodes=num_nodes))
# model = prob.model

# prob.setup()

# prob.run_model()

# derivs = prob.check_partials(compact_print=True)

"""
ODE for example that shows how to use multiple phases in Dymos to model failure of a battery cell
in a simple electrical system.
"""
import numpy as np
import openmdao.api as om

class BatteryODE(om.Group):

def initialize(self):
self.options.declare('num_nodes', default=1)
self.options.declare('num_battery', default=3)
self.options.declare('num_motor', default=3)

def setup(self):
num_nodes = self.options['num_nodes']
num_battery = self.options['num_battery']
num_motor = self.options['num_motor']

subsys=om.BalanceComp(name='I_Li', val=1.0*np.ones(num_nodes),
rhs_name='pwr_out_batt',
lhs_name='P_pack',
units='A', eq_units='W', lower=0.0, upper=50.))

promotes_inputs=['SOC'],
promotes_outputs=['dXdt:SOC'])

self.connect('battery.P_pack', 'pwr_balance.P_pack')
self.connect('motors.power_in_motor', 'pwr_balance.pwr_out_batt')
self.connect('pwr_balance.I_Li', 'battery.I_Li')
self.connect('battery.I_pack', 'motors.current_in_motor')

self.nonlinear_solver = om.NewtonSolver(solve_subsystems=False, maxiter=20)
self.linear_solver = om.DirectSolver()


## Building and running the problem#

import matplotlib.pyplot as plt

import openmdao.api as om

import dymos as dm
from dymos.examples.battery_multibranch.battery_multibranch_ode import BatteryODE
from dymos.utils.lgl import lgl

prob = om.Problem()

opt = prob.driver = om.ScipyOptimizeDriver()
opt.declare_coloring()
opt.options['optimizer'] = 'SLSQP'

num_seg = 5
seg_ends, _ = lgl(num_seg + 1)

# First phase: normal operation.
transcription = dm.Radau(num_segments=num_seg, order=5, segment_ends=seg_ends, compressed=False)
phase0 = dm.Phase(ode_class=BatteryODE, transcription=transcription)

traj_p0.set_time_options(fix_initial=True, fix_duration=True)
targets=['SOC'], rate_source='dXdt:SOC')

# Second phase: normal operation.

phase1 = dm.Phase(ode_class=BatteryODE, transcription=transcription)

traj_p1.set_time_options(fix_initial=False, fix_duration=True)
targets=['SOC'], rate_source='dXdt:SOC')

# Second phase, but with battery failure.

phase1_bfail = dm.Phase(ode_class=BatteryODE, ode_init_kwargs={'num_battery': 2},
transcription=transcription)

traj_p1_bfail.set_time_options(fix_initial=False, fix_duration=True)
targets=['SOC'], rate_source='dXdt:SOC')

# Second phase, but with motor failure.

phase1_mfail = dm.Phase(ode_class=BatteryODE, ode_init_kwargs={'num_motor': 2},
transcription=transcription)

traj_p1_mfail.set_time_options(fix_initial=False, fix_duration=True)
targets=['SOC'], rate_source='dXdt:SOC')

prob.model.options['assembled_jac_type'] = 'csc'
prob.model.linear_solver = om.DirectSolver(assemble_jac=True)

prob.setup()

prob['traj.phase0.t_initial'] = 0
prob['traj.phase0.t_duration'] = 1.0*3600

prob['traj.phase1.t_initial'] = 1.0*3600
prob['traj.phase1.t_duration'] = 1.0*3600

prob['traj.phase1_bfail.t_initial'] = 1.0*3600
prob['traj.phase1_bfail.t_duration'] = 1.0*3600

prob['traj.phase1_mfail.t_initial'] = 1.0*3600
prob['traj.phase1_mfail.t_duration'] = 1.0*3600

prob.set_solver_print(level=0)
dm.run_problem(prob)

soc0 = prob['traj.phase0.states:state_of_charge']
soc1 = prob['traj.phase1.states:state_of_charge']
soc1b = prob['traj.phase1_bfail.states:state_of_charge']
soc1m = prob['traj.phase1_mfail.states:state_of_charge']

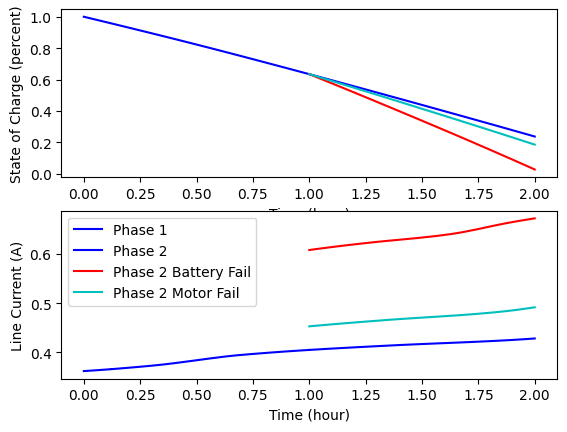

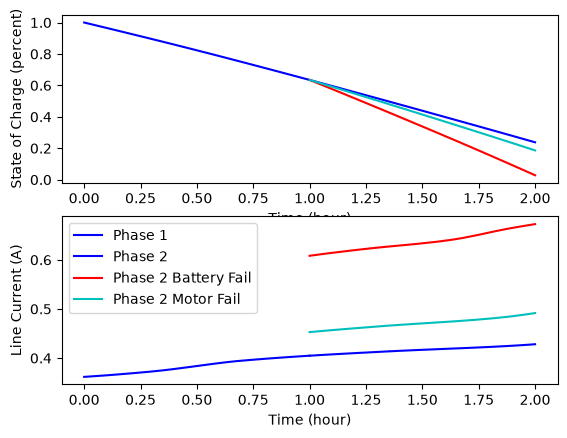

# Plot Results
t0 = prob['traj.phases.phase0.timeseries.time']/3600
t1 = prob['traj.phases.phase1.timeseries.time']/3600
t1b = prob['traj.phases.phase1_bfail.timeseries.time']/3600
t1m = prob['traj.phases.phase1_mfail.timeseries.time']/3600

plt.subplot(2, 1, 1)
plt.plot(t0, soc0, 'b')
plt.plot(t1, soc1, 'b')
plt.plot(t1b, soc1b, 'r')
plt.plot(t1m, soc1m, 'c')
plt.xlabel('Time (hour)')
plt.ylabel('State of Charge (percent)')

I_Li0 = prob['traj.phases.phase0.rhs_all.pwr_balance.I_Li']
I_Li1 = prob['traj.phases.phase1.rhs_all.pwr_balance.I_Li']
I_Li1b = prob['traj.phases.phase1_bfail.rhs_all.pwr_balance.I_Li']
I_Li1m = prob['traj.phases.phase1_mfail.rhs_all.pwr_balance.I_Li']

plt.subplot(2, 1, 2)
plt.plot(t0, I_Li0, 'b')
plt.plot(t1, I_Li1, 'b')
plt.plot(t1b, I_Li1b, 'r')
plt.plot(t1m, I_Li1m, 'c')
plt.xlabel('Time (hour)')
plt.ylabel('Line Current (A)')

plt.legend(['Phase 1', 'Phase 2', 'Phase 2 Battery Fail', 'Phase 2 Motor Fail'], loc=2)

plt.show()

--- Constraint Report [traj] ---
--- phase0 ---
None
--- phase1 ---
None
--- phase1_bfail ---
None
--- phase1_mfail ---
None

Model viewer data has already been recorded for Driver.

Full total jacobian was computed 3 times, taking 0.074369 seconds.
Total jacobian shape: (107, 122)

Jacobian shape: (107, 122)  ( 4.63% nonzero)
FWD solves: 6   REV solves: 0
Total colors vs. total size: 6 vs 122  (95.1% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity: 0.074369 sec.
Time to compute coloring: 0.064645 sec.
Memory to compute coloring: 0.375000 MB.

Optimization terminated successfully    (Exit mode 0)
Current function value: [7200.]
Iterations: 3
Function evaluations: 4
