# Supersonic Interceptor Minimum Time Climb#

This example is based on the A/C Min Time to Climb example given in chapter 4 of Bryson [Bry99]. It finds the angle-of-attack history required to accelerate a supersonic interceptor from near ground level, Mach 0.4 to an altitude of 20 km and Mach 1.0.

The vehicle dynamics are given by

(62)#\begin{align} \frac{dv}{dt} &= \frac{T}{m} \cos \alpha - \frac{D}{m} - g \sin \gamma \\ \frac{d\gamma}{dt} &= \frac{T}{m v} \sin \alpha + \frac{L}{m v} - \frac{g \cos \gamma}{v} \\ \frac{dh}{dt} &= v \sin \gamma \\ \frac{dr}{dt} &= v \cos \gamma \\ \frac{dm}{dt} &= - \frac{T}{g I_{sp}} \end{align}

The initial conditions are

(63)#\begin{align} r_0 &= 0 \rm{\,m} \\ h_0 &= 100 \rm{\,m} \\ v_0 &= 135.964 \rm{\,m/s} \\ \gamma_0 &= 0 \rm{\,deg} \\ m_0 &= 19030.468 \rm{\,kg} \end{align}

and the final conditions are

(64)#\begin{align} h_f &= 20000 \rm{\,m} \\ M_f &= 1.0 \\ \gamma_0 &= 0 \rm{\,deg} \end{align}

## The ODE System: min_time_climb_ode.py#

The top level ODE definition is a Group that connects several subsystems.

Hide code cell outputs
import openmdao.api as om
from .dynamic_pressure_comp_partial_coloring import DynamicPressureCompFD
from ..aero.dynamic_pressure_comp import DynamicPressureComp
from ..aero.lift_drag_force_comp import LiftDragForceComp
from ..aero.cd0_comp import CD0Comp
from ..aero.kappa_comp import KappaComp
from ..aero.cla_comp import CLaComp
from ..aero.cl_comp import CLComp
from ..aero.cd_comp import CDComp
from ..aero.mach_comp import MachComp

class AeroGroup(om.Group):
"""
The purpose of the AeroGroup is to compute the aerodynamic forces on the
aircraft in the body frame.

Parameters
----------
v : float
air-relative velocity (m/s)
sos : float
local speed of sound (m/s)
rho : float
atmospheric density (kg/m**3)
alpha : float
S : float
aerodynamic reference area (m**2)

"""
def initialize(self):
self.options.declare('num_nodes', types=int,
desc='Number of nodes to be evaluated in the RHS')
self.options.declare('fd', types=bool, default=False, desc='If True, use fd for partials for dynamic pressure')
self.options.declare('partial_coloring', types=bool, default=False,
desc='If True and fd is True, color the approximated partials of dynamic pressure')

def setup(self):
nn = self.options['num_nodes']

if self.options['fd']:
q_comp = DynamicPressureCompFD(num_nodes=nn, partial_coloring=self.options['partial_coloring'])
else:
q_comp = DynamicPressureComp(num_nodes=nn)

subsys=MachComp(num_nodes=nn),
promotes_inputs=['v', 'sos'],
promotes_outputs=['mach'])

subsys=CD0Comp(num_nodes=nn),
promotes_inputs=['mach'],
promotes_outputs=['CD0'])

subsys=KappaComp(num_nodes=nn),
promotes_inputs=['mach'],
promotes_outputs=['kappa'])

subsys=CLaComp(num_nodes=nn),
promotes_inputs=['mach'],
promotes_outputs=['CLa'])

subsys=CLComp(num_nodes=nn),
promotes_inputs=['alpha', 'CLa'],
promotes_outputs=['CL'])

subsys=CDComp(num_nodes=nn),
promotes_inputs=['CD0', 'alpha', 'CLa', 'kappa'],
promotes_outputs=['CD'])

subsys=q_comp,
promotes_inputs=['rho', 'v'],
promotes_outputs=['q'])

subsys=LiftDragForceComp(num_nodes=nn),
promotes_inputs=['CL', 'CD', 'q', 'S'],
promotes_outputs=['f_lift', 'f_drag'])

import openmdao.api as om
from dymos.models.eom import FlightPathEOM2D
from dymos.examples.min_time_climb.prop import PropGroup
from dymos.models.atmosphere import USatm1976Comp
from dymos.examples.min_time_climb.doc.aero_partial_coloring import AeroGroup

class MinTimeClimbODE(om.Group):

def initialize(self):
self.options.declare('num_nodes', types=int)
self.options.declare('fd', types=bool, default=False, desc='If True, use fd for partials')
self.options.declare('partial_coloring', types=bool, default=False,
desc='If True and fd is True, color the approximated partials')

def setup(self):
nn = self.options['num_nodes']

subsys=USatm1976Comp(num_nodes=nn, h_def='geodetic'),
promotes_inputs=['h'])

subsys=AeroGroup(num_nodes=nn,
fd=self.options['fd'],
partial_coloring=self.options['partial_coloring']),
promotes_inputs=['v', 'alpha', 'S'])

self.connect('atmos.sos', 'aero.sos')
self.connect('atmos.rho', 'aero.rho')

subsys=PropGroup(num_nodes=nn),
promotes_inputs=['h', 'Isp', 'throttle'])

self.connect('aero.mach', 'prop.mach')

subsys=FlightPathEOM2D(num_nodes=nn),
promotes_inputs=['m', 'v', 'gam', 'alpha'])

self.connect('aero.f_drag', 'flight_dynamics.D')
self.connect('aero.f_lift', 'flight_dynamics.L')
self.connect('prop.thrust', 'flight_dynamics.T')


## Building and running the problem#

In the following code we follow the following process to solve the problem:

import matplotlib.pyplot as plt

import openmdao.api as om

import dymos as dm
from dymos.examples.plotting import plot_results

#
# Instantiate the problem and configure the optimization driver
#
p = om.Problem(model=om.Group())

p.driver = om.pyOptSparseDriver()
p.driver.options['optimizer'] = 'SLSQP'
p.driver.declare_coloring()

#
# Instantiate the trajectory and phase
#
traj = dm.Trajectory()

phase = dm.Phase(ode_class=MinTimeClimbODE,
transcription=dm.GaussLobatto(num_segments=15, compressed=False))

#
# Set the options on the optimization variables
# Note the use of explicit state units here since much of the ODE uses imperial units
# and we prefer to solve this problem using metric units.
#
phase.set_time_options(fix_initial=True, duration_bounds=(50, 400),
duration_ref=100.0)

ref=1.0E3, defect_ref=1.0E3,
rate_source='flight_dynamics.r_dot')

ref=1.0E2, defect_ref=1.0E2,
rate_source='flight_dynamics.h_dot')

ref=1.0E2, defect_ref=1.0E2,
rate_source='flight_dynamics.v_dot')

ref=1.0, defect_ref=1.0,
rate_source='flight_dynamics.gam_dot')

ref=1.0E3, defect_ref=1.0E3,
rate_source='prop.m_dot')

rate_continuity=True, rate_continuity_scaler=100.0,
rate2_continuity=False)

#
# Setup the boundary and path constraints
#

# Minimize time at the end of the phase

p.model.linear_solver = om.DirectSolver()

#
# Setup the problem and set the initial guess
#
p.setup(check=True)

p['traj.phase0.t_initial'] = 0.0
p['traj.phase0.t_duration'] = 500

p.set_val('traj.phase0.states:r', phase.interp('r', [0.0, 50000.0]))
p.set_val('traj.phase0.states:h', phase.interp('h', [100.0, 20000.0]))
p.set_val('traj.phase0.states:v', phase.interp('v', [135.964, 283.159]))
p.set_val('traj.phase0.states:gam', phase.interp('gam', [0.0, 0.0]))
p.set_val('traj.phase0.states:m', phase.interp('m', [19030.468, 10000.]))
p.set_val('traj.phase0.controls:alpha', phase.interp('alpha', [0.0, 0.0]))

#
# Solve for the optimal trajectory
#

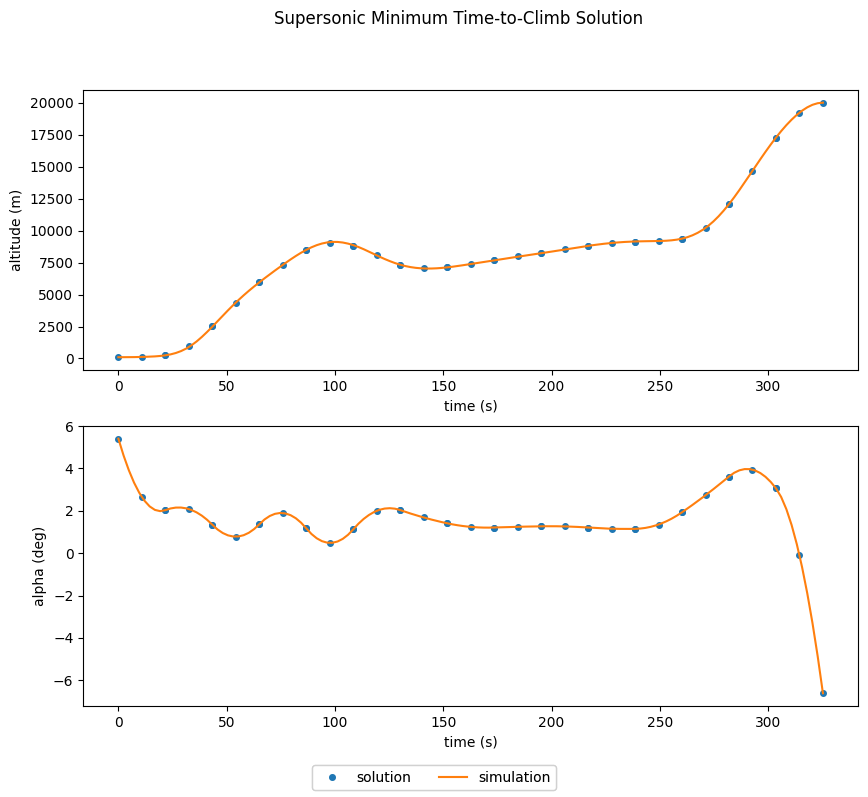

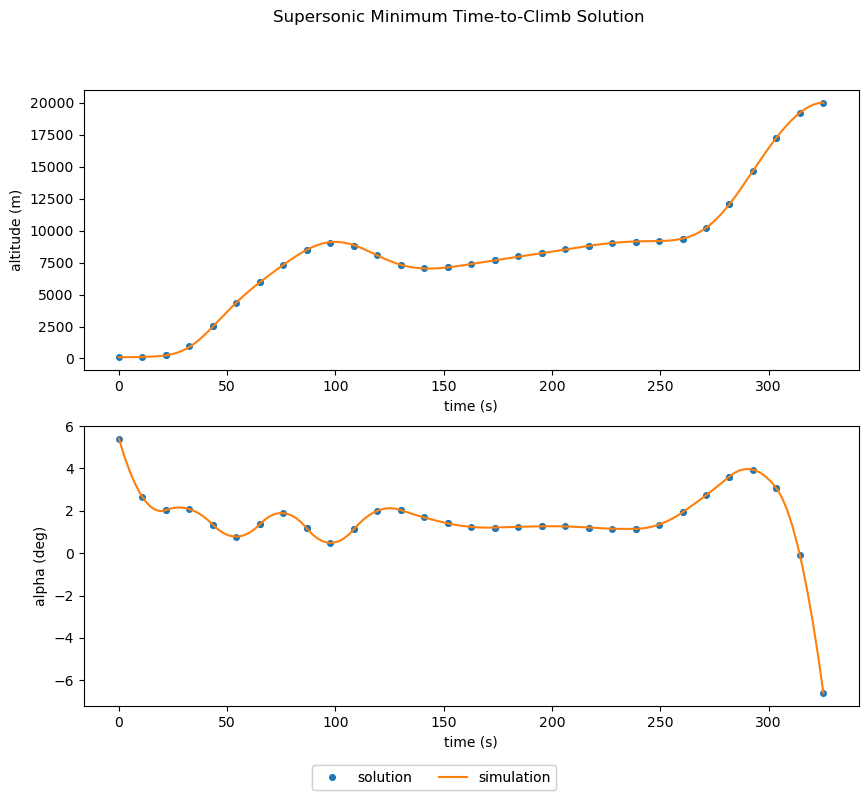

dm.run_problem(p, simulate=True)
